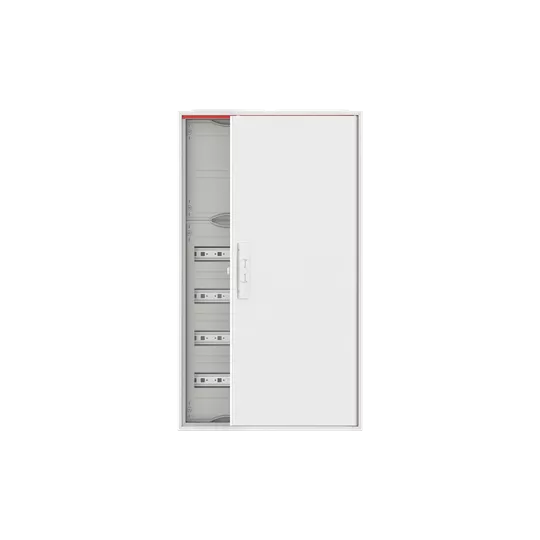

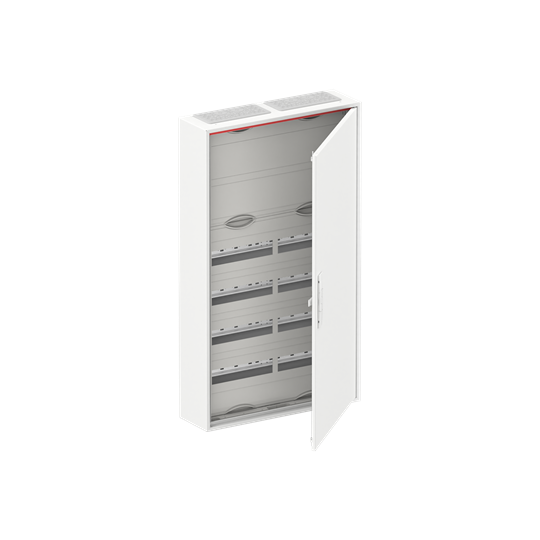

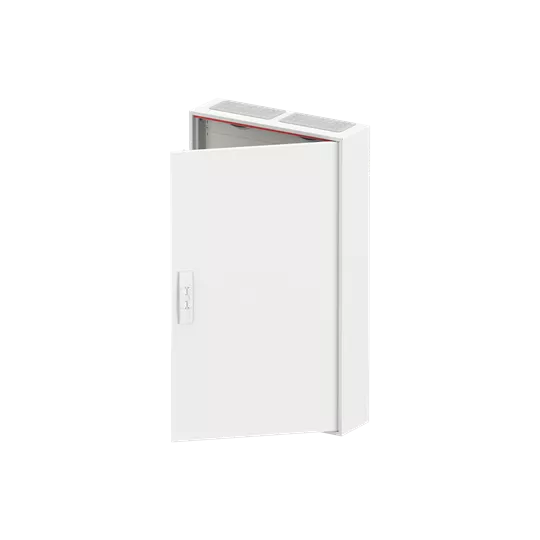

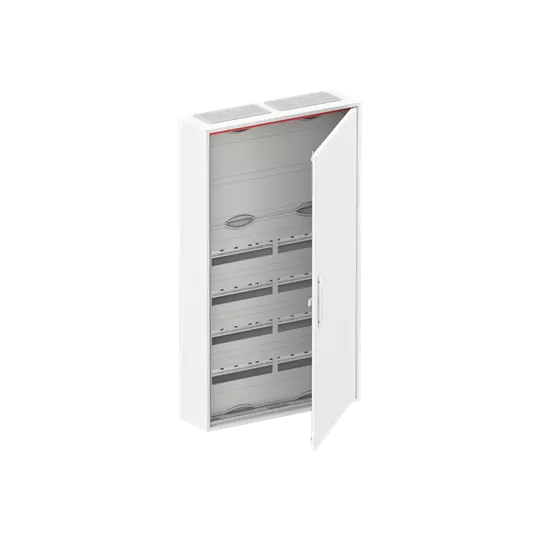

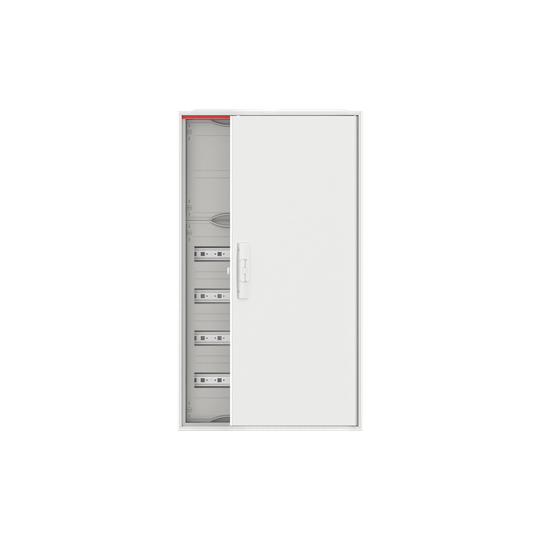

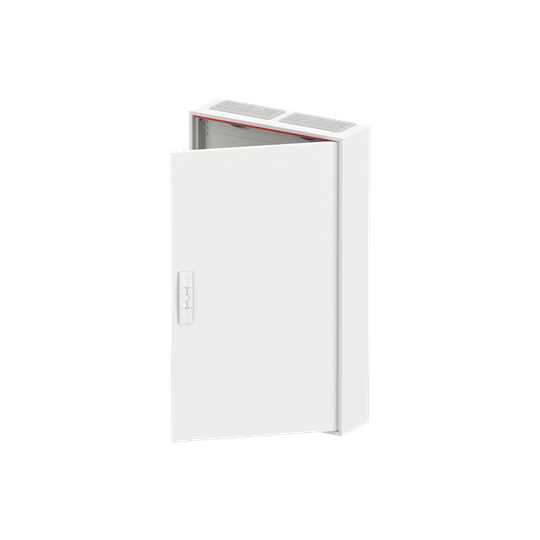

CA26K obudowa biała n/t, 96M, IP44, 125A, II klasa, 950x550x160mm (WxSxG) | szyny DIN + zestaw na zaciski | drzwi pełne | N+PE bezśrubowe
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CPX052291R9999 |
GTIN(EAN) | 4011617522911 |
Price unit | piece |
Catalog price | 2 735,59 zł (2 224,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 18,83 kg |
ETIM class: | Small distribution board |
Mounting method: | Surface mounted |
Number of rows: | 6 |
Width in number of modular spacings: | 24 |
Type of covering: | Door |
Cover model: | Closed |
Transparent cover/door: | no |
Housing material: | Steel |
Height: | 950 mm |
Width: | 550 mm |
Depth: | 160 mm |
Inner depth: | 152 mm |
Earthing terminal block: | no |
Neutral terminal block: | no |
DIN-rail: | yes |
With mounting plate: | no |
Extension possible: | yes |
EMC-version: | no |
Colour: | White |
RAL-number: | 9016 |
Degree of protection (IP): | IP44 |
With lock: | yes |
Type of closure: | Other |
Signal passing door: | no |
Built-in depth: | 0 mm |
Built-in height: | 0 mm |
Built-in width: | 0 mm |
Type of door: | Single |
