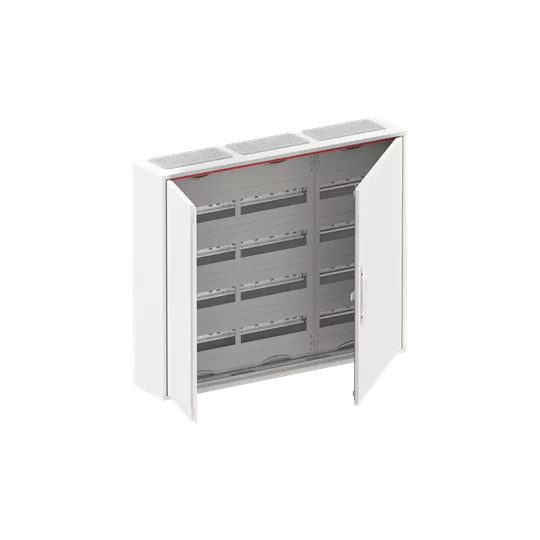

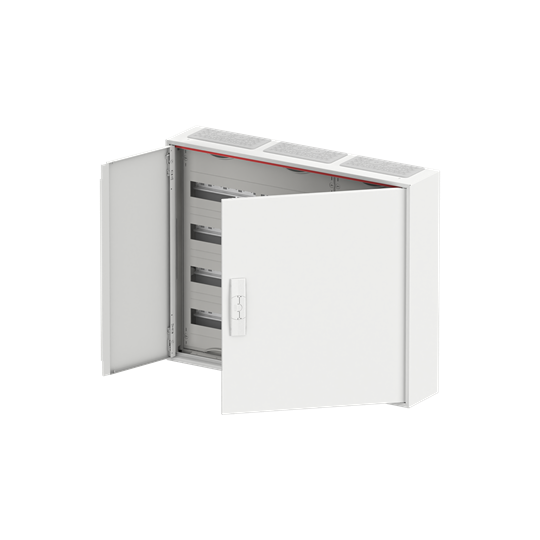

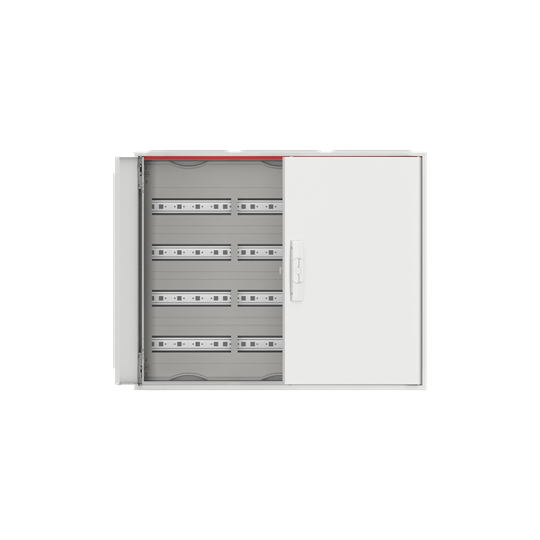

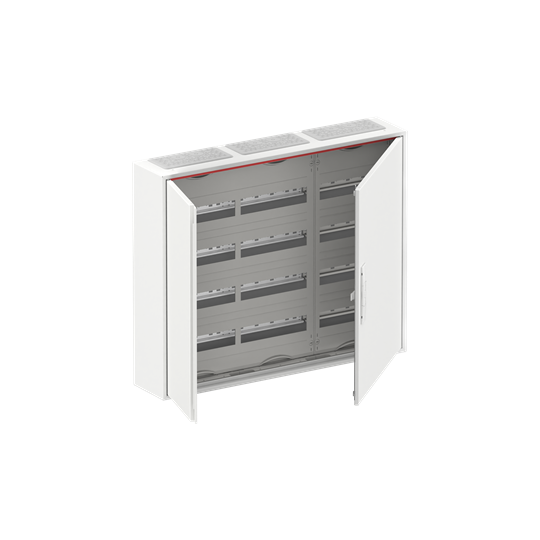

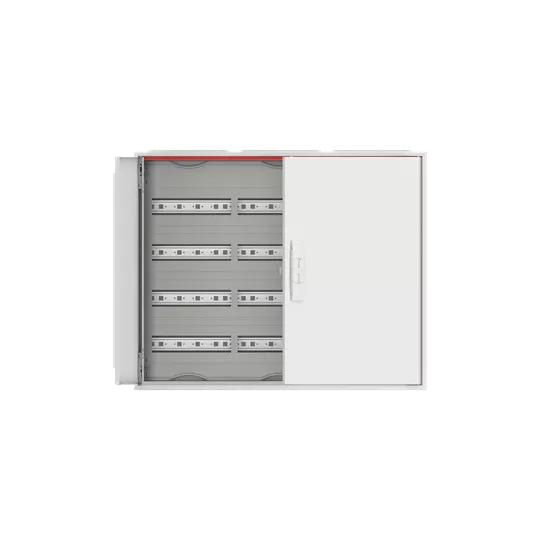

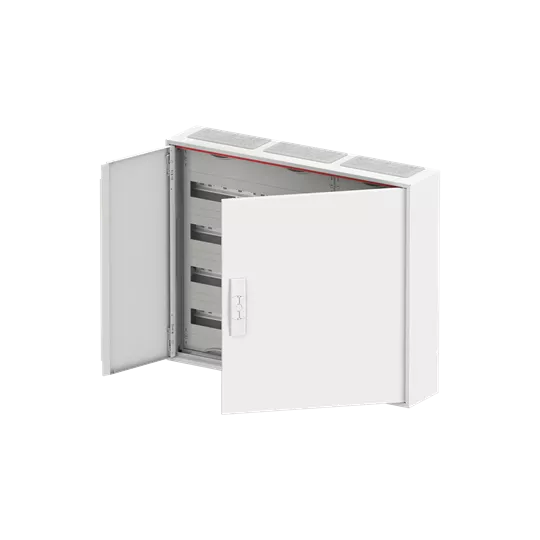

CA34V obudowa biała n/t, 144M, IP44, 125A, II klasa, 650x800x160mm (WxSxG) | szyny DIN | drzwi pełne | N+PE bezśrubowe
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CPX052190R9999 |
| GTIN(EAN) | 4011617521907 |
| Price unit | piece |
| Catalog price | 2 891,40 zł (2 350,73 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 19,93 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Number of rows: | 4 |
| Width in number of modular spacings: | 36 |
| Type of covering: | Door |
| Cover model: | Closed |
| Transparent cover/door: | no |
| Housing material: | Steel |
| Height: | 650 mm |
| Width: | 800 mm |
| Depth: | 160 mm |
| Inner depth: | 152 mm |
| Earthing terminal block: | yes |
| Neutral terminal block: | yes |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | yes |
| EMC-version: | no |
| Colour: | White |
| RAL-number: | 9016 |
| Degree of protection (IP): | IP44 |
| With lock: | yes |
| Type of closure: | Other |
| Signal passing door: | no |
| Built-in depth: | 0 mm |
| Built-in height: | 0 mm |
| Built-in width: | 0 mm |
| Type of door: | Double |
