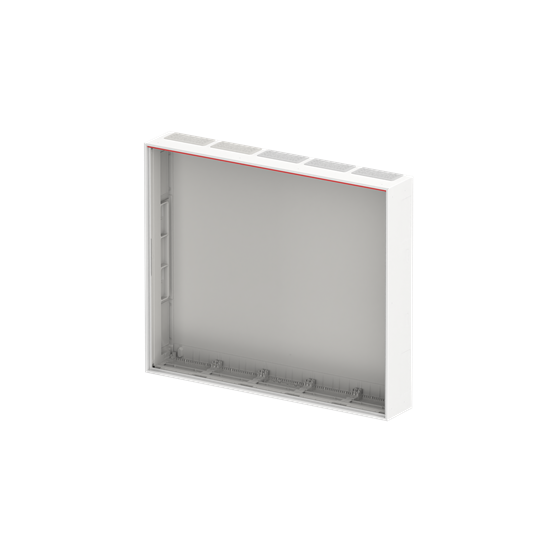

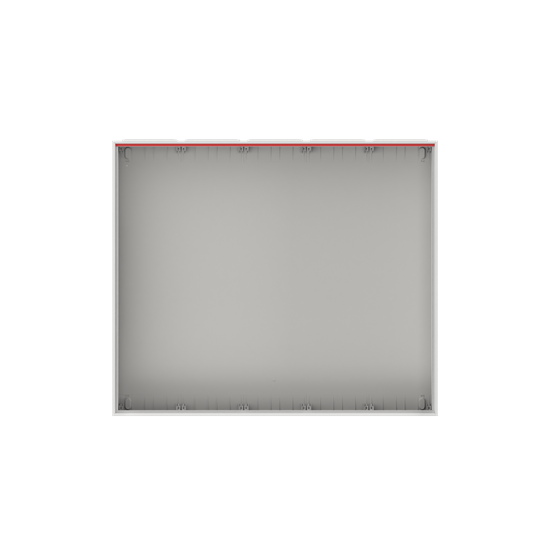

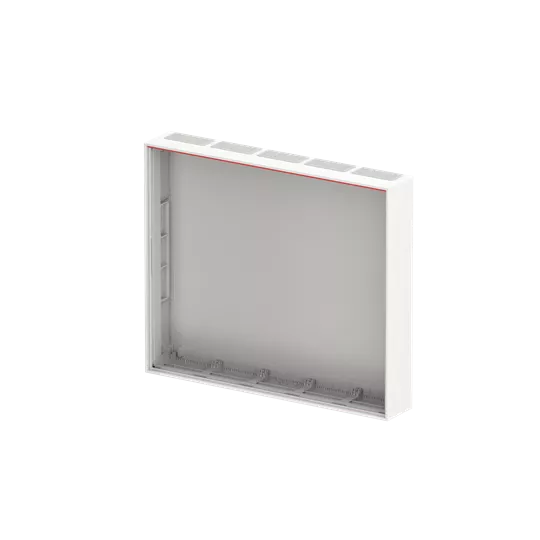

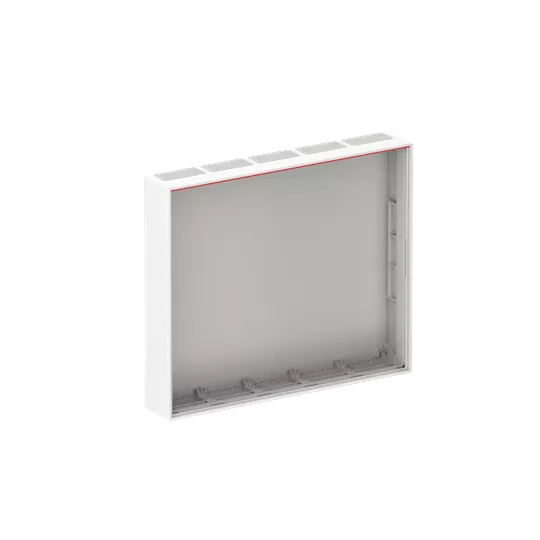

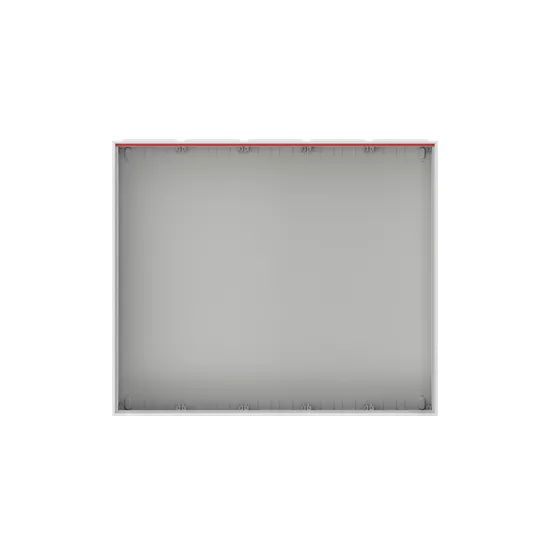

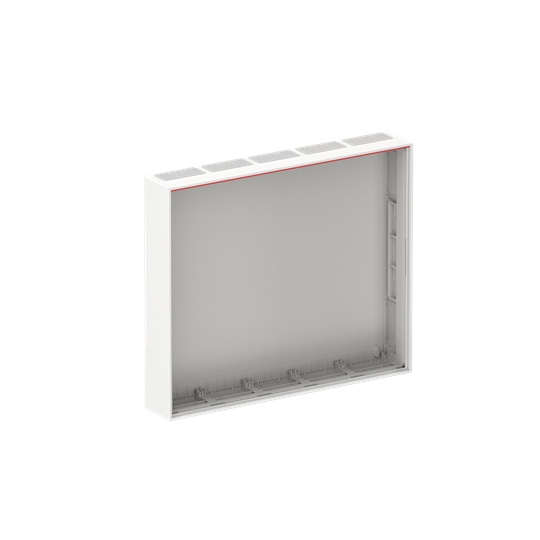

A57B obudowa biała n/t, 420M, IP00, 250A, II klasa, 1100x1300x215mm | pusta | brak drzwi | brak N+PE
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CPX052087R9999 |
| GTIN(EAN) | 4011617520870 |
| Price unit | piece |
| Catalog price | 4 378,41 zł (3 559,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 23,36 kg |
| ETIM class: | Empty cabinet |
| Mounting method: | Surface mounted |
| Type of covering: | None |
| Cover model: | With notch |
| Type of door: | None |
| Transparent cover/door: | no |
| With lock: | no |
| Nominal current (In): | 250 A |
| Height: | 1100 mm |
| Width: | 1300 mm |
| Depth: | 215 mm |
| Built-in depth: | 190 mm |
| Inner depth: | 207 mm |
| Material plate thickness cabinet: | 0.9 mm |
| Material plate thickness door/cover: | 0.9 mm |
| Colour: | White |
| RAL-number: | 9016 |
| Number of modules: | 420 |
| Number of rows: | 7 |
| Width in number of modular spacings: | 60 |
| Number of openings for flange plates: | 5 |
| Extension possible: | yes |
| Number of conduit inlets: | 255 |
| Housing material: | Steel plate/plastic |
| Surface protection: | Powder coating |
| With mounting plate: | no |
| Suitable for outdoor use: | no |
| Suitable for lightning protection: | yes |
| Degree of protection (IP): | Other |
| Protection class: | II |
| Impact strength: | IK07 |
| Circuit integrity: | None |
| Cover with overpressure release: | no |
