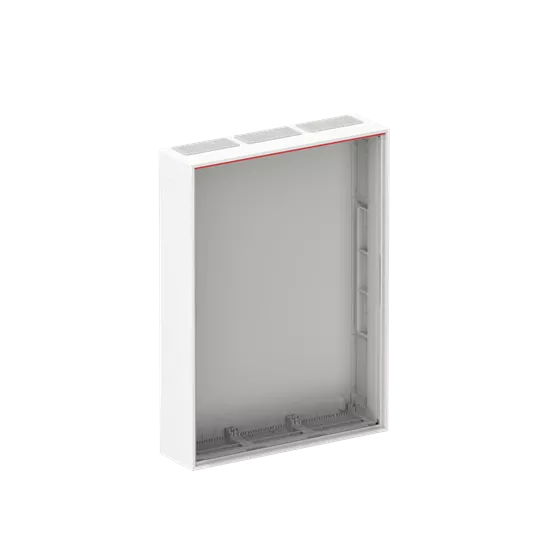

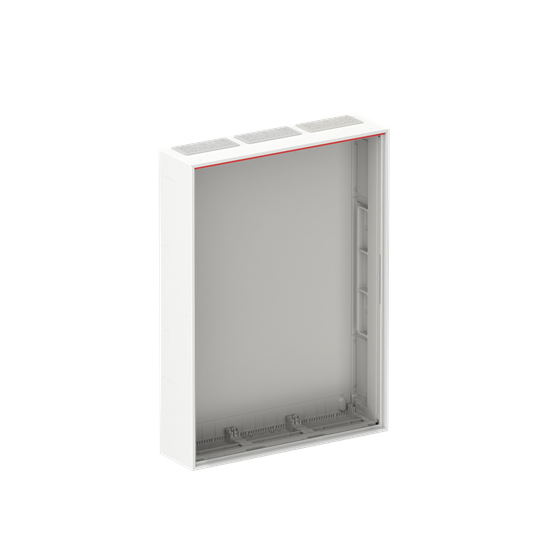

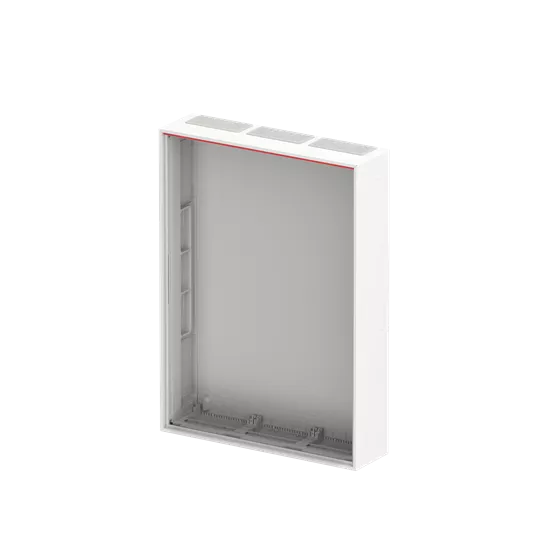

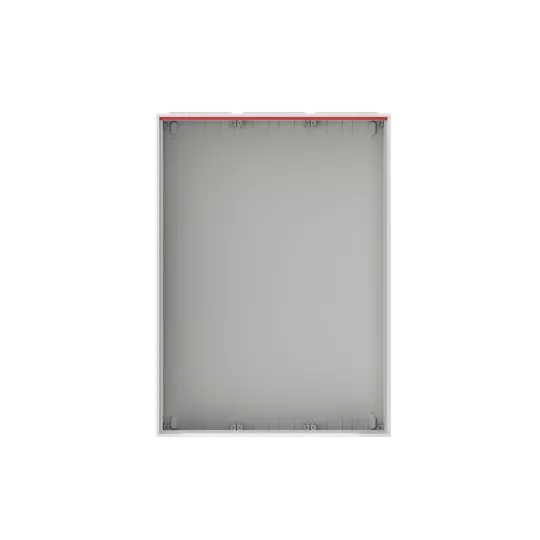

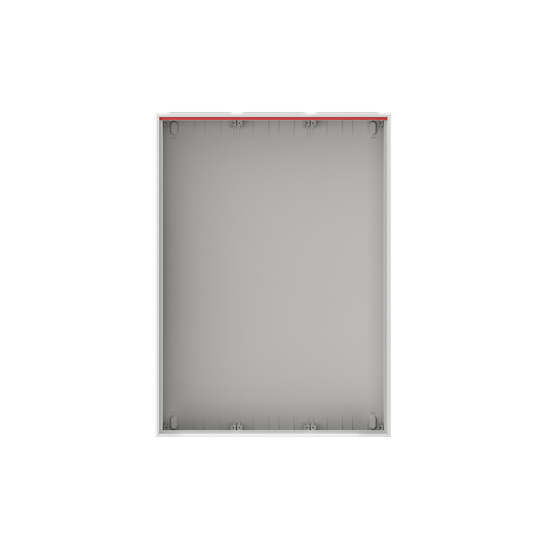

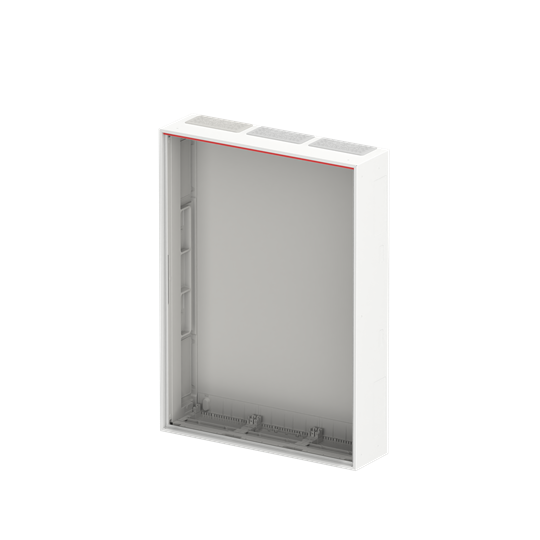

A37B obudowa biała n/t, 252M, IP00, 250A, II klasa, 1100x800x215mm | pusta | brak drzwi | brak N+PE
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CPX052085R9999 |
GTIN(EAN) | 4011617520856 |
Price unit | piece |
Catalog price | 2 792,59 zł (2 270,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 15,28 kg |
ETIM class: | Empty cabinet |
Mounting method: | Surface mounted |
Type of covering: | None |
Cover model: | With notch |
Type of door: | None |
Transparent cover/door: | no |
With lock: | no |
Nominal current (In): | 250 A |
Height: | 1100 mm |
Width: | 800 mm |
Depth: | 215 mm |
Built-in depth: | 190 mm |
Inner depth: | 207 mm |
Material plate thickness cabinet: | 0.9 mm |
Material plate thickness door/cover: | 0.9 mm |
Colour: | White |
RAL-number: | 9016 |
Number of modules: | 252 |
Number of rows: | 7 |
Width in number of modular spacings: | 36 |
Number of openings for flange plates: | 3 |
Extension possible: | yes |
Number of conduit inlets: | 153 |
Housing material: | Steel plate/plastic |
Surface protection: | Powder coating |
With mounting plate: | no |
Suitable for outdoor use: | no |
Suitable for lightning protection: | yes |
Degree of protection (IP): | Other |
Protection class: | II |
Impact strength: | IK07 |
Circuit integrity: | None |
Cover with overpressure release: | no |
