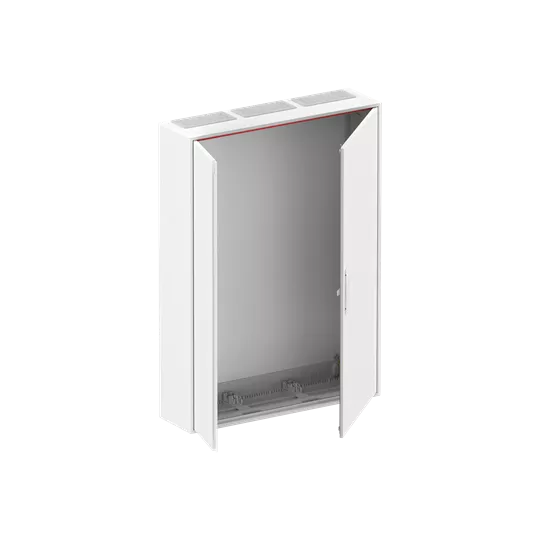

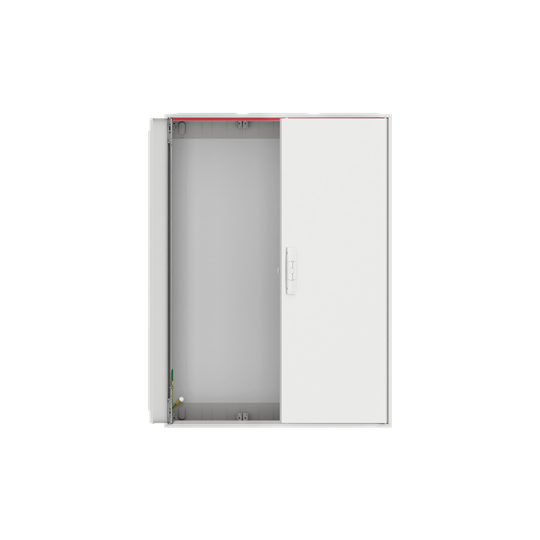

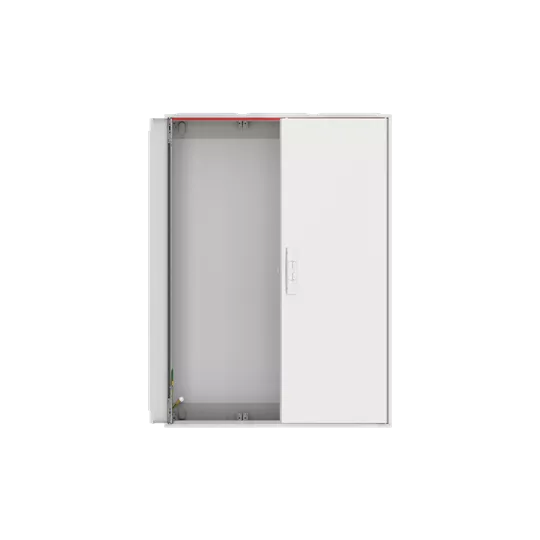

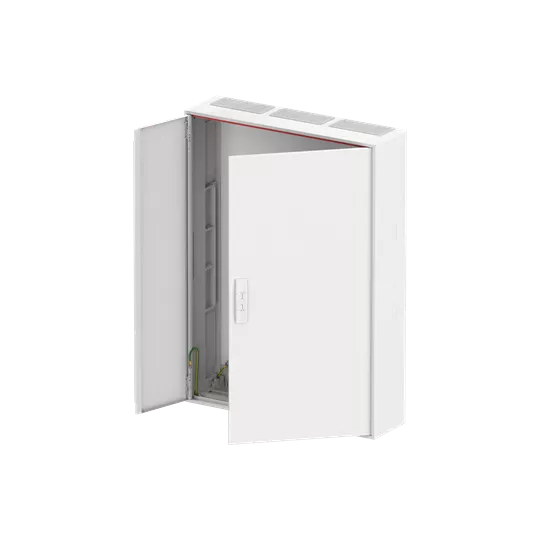

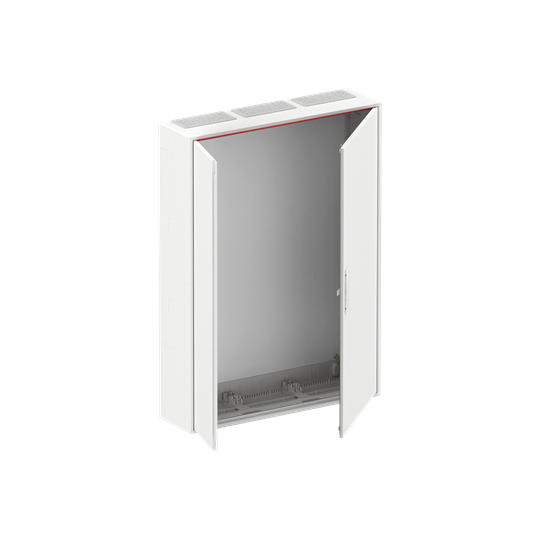

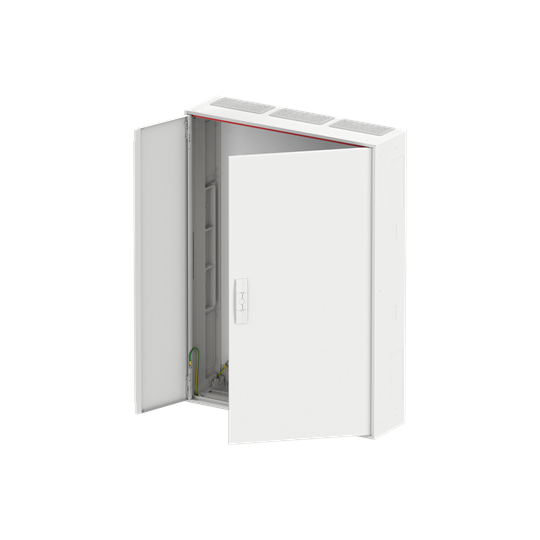

B37 obudowa biała n/t, 252M, IP44, 250A, I klasa, 1100x800x215mm | pusta | drzwi pełne | brak N+PE
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CPX052070R9999 |
| GTIN(EAN) | 4011617520702 |
| Price unit | piece |
| Catalog price | 3 179,41 zł (2 584,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 22,61 kg |
| ETIM class: | Empty cabinet |
| Mounting method: | Surface mounted |
| Type of covering: | Door |
| Cover model: | With notch |
| Type of door: | Double |
| Transparent cover/door: | no |
| With lock: | yes |
| Nominal current (In): | 250 A |
| Height: | 1100 mm |
| Width: | 800 mm |
| Depth: | 215 mm |
| Built-in depth: | 190 mm |
| Inner depth: | 207 mm |
| Material plate thickness cabinet: | 0.9 mm |
| Material plate thickness door/cover: | 0.9 mm |
| Colour: | White |
| RAL-number: | 9016 |
| Number of modules: | 252 |
| Number of rows: | 7 |
| Width in number of modular spacings: | 36 |
| Number of openings for flange plates: | 3 |
| Extension possible: | yes |
| Number of conduit inlets: | 153 |
| Housing material: | Steel plate/plastic |
| Surface protection: | Powder coating |
| With mounting plate: | no |
| Suitable for outdoor use: | no |
| Suitable for lightning protection: | yes |
| Degree of protection (IP): | IP44 |
| Protection class: | I |
| Impact strength: | IK07 |
| Circuit integrity: | None |
| Cover with overpressure release: | no |
