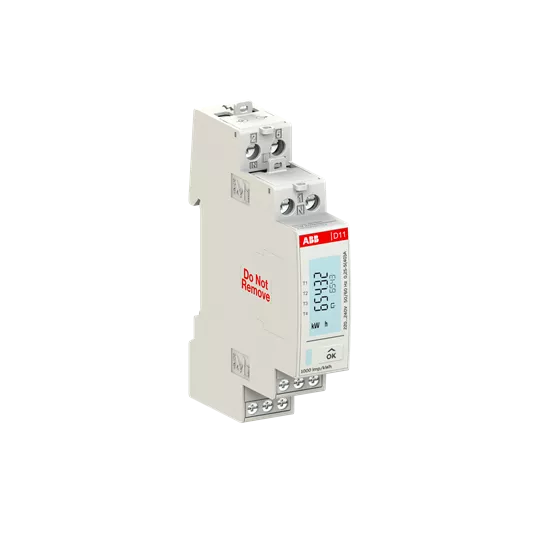

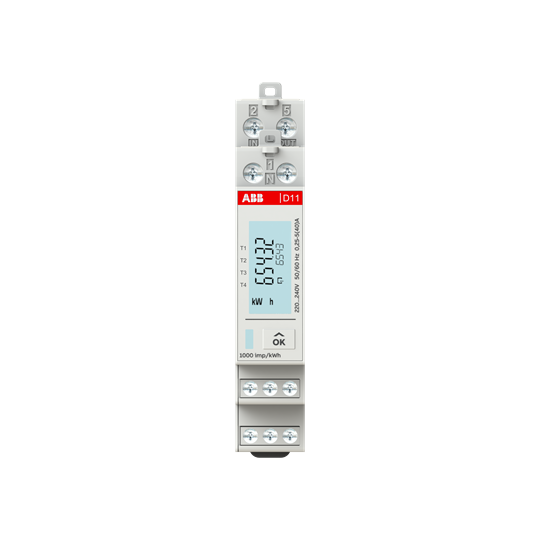

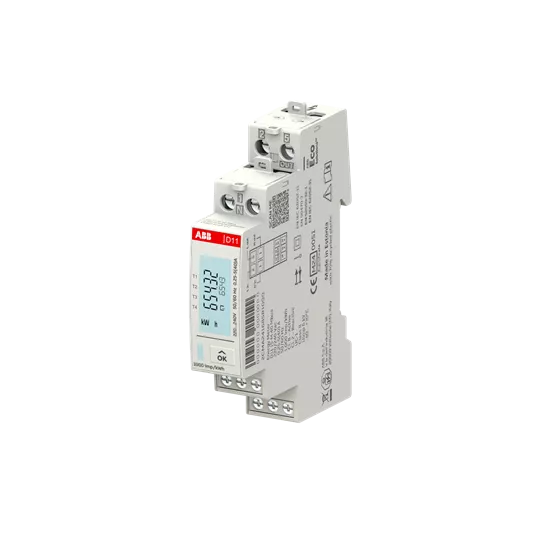

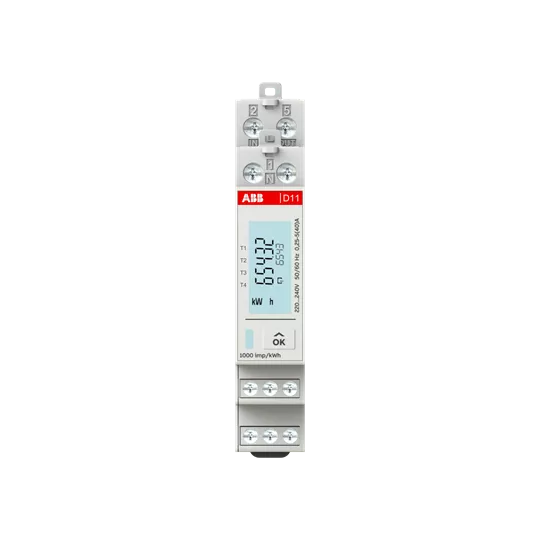

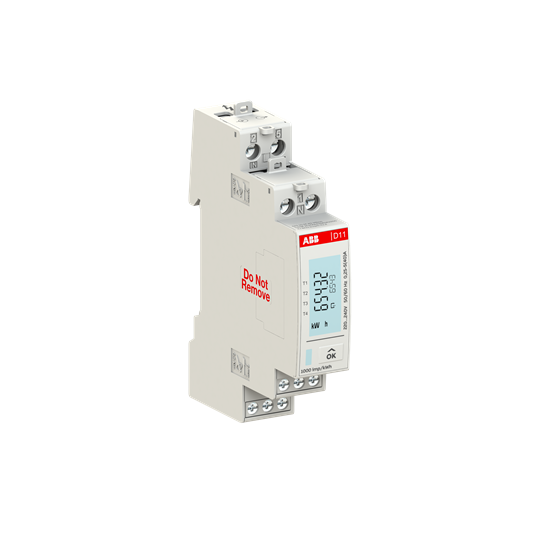

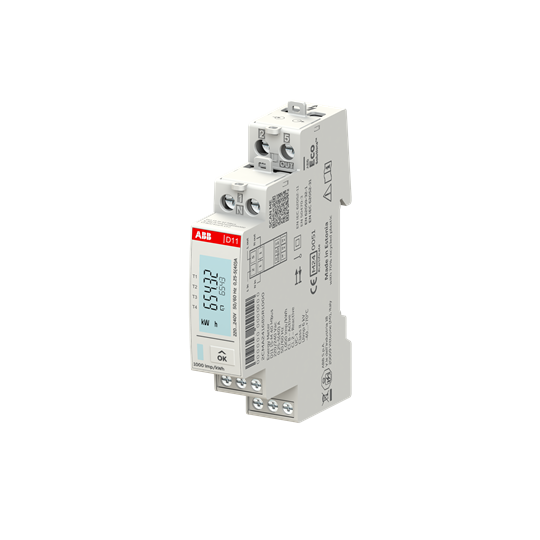

D11 15-M 40 Mbus, licznik energii elektrycznej, 1 faz, bezpośr do 40A, en. czynna+bierna, klasa dokł B(1), wyj/wej imp, M-Bus
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CMA241685R1000 |
GTIN(EAN) | 8012542635857 |
Price unit | piece |
Catalog price | 867,42 zł (705,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 70 g |
ETIM class: | Kilowatt-hour meter |
Type of meter: | Electronic |
Nominal current (In): | 40 A |
Max. current (Imax): | 40 A |
Frequency: | 50 - 60 Hz |
Power consumption: | 0.69 W |
Accuracy class: | B |
Pole type: | Single phase |
Model: | Direct measurement |
Tariff type: | Two-tariff |
Tariff control: | Internal/external |
Approval: | Measuring Instruments Directive |
Pulse output: | Electrical |
Pulse type: | S0 |
Type of indication: | Digital |
Mounting method: | DRA (DIN-rail adapter) |
Width in number of modular spacings: | 1 |
Width: | 17.5 mm |
Depth: | 65 mm |
Height: | 92 mm |
Type of interface: | Other |
With lock code: | yes |
Number of positions total (counter): | 6 |
Degree of protection (IP): | IP20 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-26 01:49:04 |
Files to download: | |
External links: |
