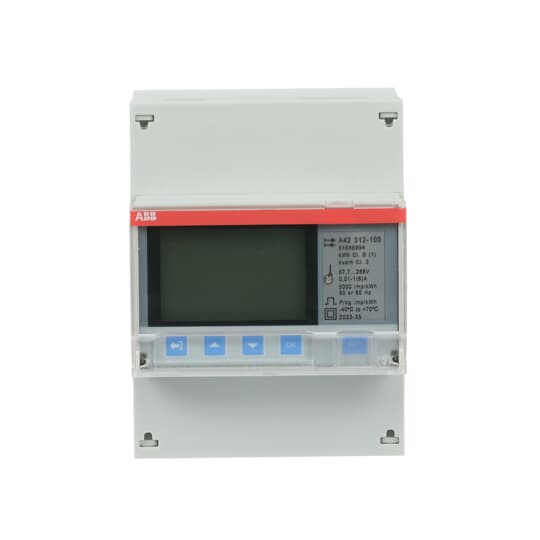

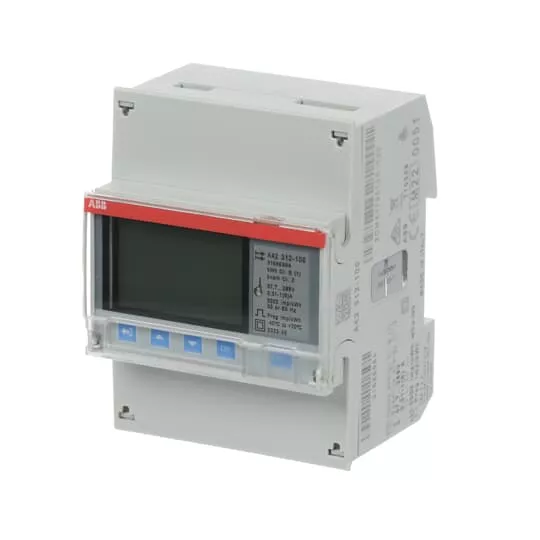

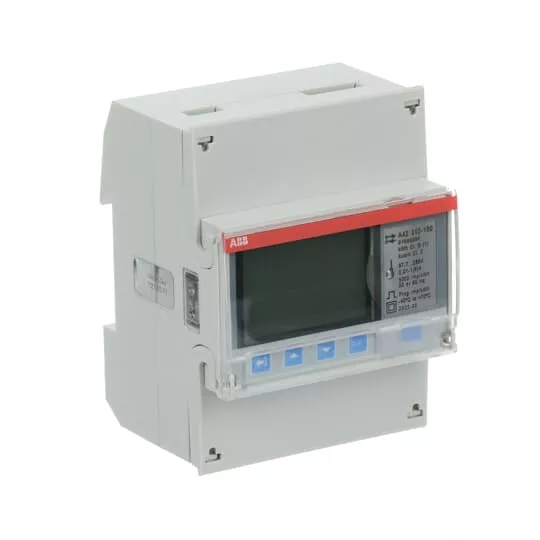

A42 312-100, licznik energii elektrycznej, 1 faz, przekł, en. czynna+bierna, klasa dokł B(1), wyj/wej imp, Modbus/RS485, seria Silver
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CMA170512R1000 |
| GTIN(EAN) | 7392696705127 |
| Price unit | piece |
| Catalog price | 4 706,90 zł (3 826,75 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 207 g |
| ETIM class: | Kilowatt-hour meter |
| Type of meter: | Electronic |
| Nominal current (In): | 6 A |
| Max. current (Imax): | 6 A |
| Accuracy class: | B |
| Pole type: | Single phase |
| Tariff type: | Multi-tariff |
| Tariff control: | External |
| Measurement type load profile: | no |
| Escapement mechanism: | yes |
| Calibrated: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | Electrical |
| Pulse type: | S0 |
| Type of indication: | Digital |
| Mounting method: | DRA (DIN-rail adapter) |
| Width in number of modular spacings: | 4 |
| Width: | 70 mm |
| Depth: | 65 mm |
| Height: | 26.5 mm |
| Type of interface: | Other |
| EEC40 signature: | no |
| With lock code: | no |
| Number of positions total (counter): | 7 |
| Degree of protection (IP): | IP20 |
| Power consumption: | 0.801 W |
