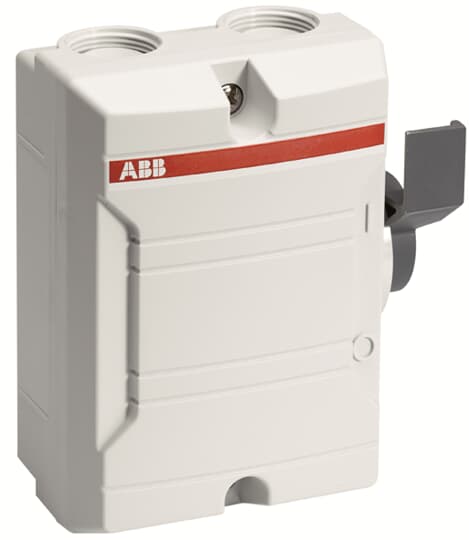

BW325WTPN Rozłącznik w obudowie plastikowej, 3-bieg, 25A, IP65, napęd boczny, jasnoszara obudowa z jasnoszarą pokrywą, membranowa
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CMA142402R1000 |
| GTIN(EAN) | 7392696424028 |
| Price unit | piece |
| Catalog price | 108,84 zł (88,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 310 g |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated permanent current Iu: | 25 A |
| Rated permanent current at AC-23, 400 V: | 16 A |
| Rated operation power at AC-23, 400 V: | 7.5 kW |
| Switching power at 400 V: | 7.5 kW |
| Number of poles: | 3 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Complete device in housing |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Colour control element: | Grey |
| Interlockable: | yes |
| Degree of protection (IP), front side: | IP65 |
| Rated operating voltage: | 690 - 690 V |
| Type of control element: | Rocker lever |
| Degree of protection (NEMA): | Other |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Width: | 111 mm |
| Height: | 130 mm |
| Depth: | 60 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-26 00:06:16 |
| Files to download: | |
| External links: |
