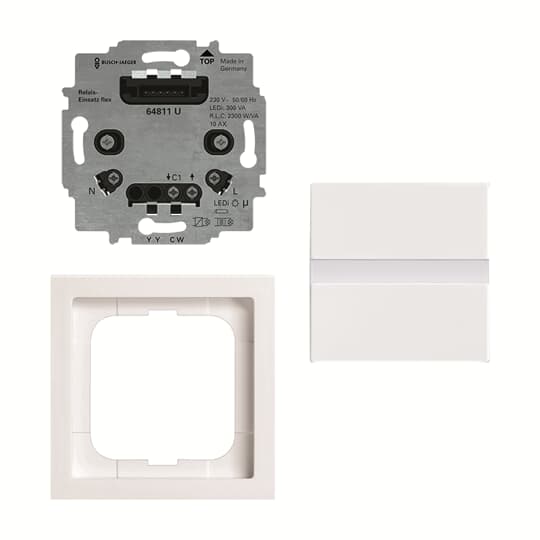

64765 UJ-84-500 Zestaw łącznik z czujką FLEX sensor biały FUTURE
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CKA006800A2914 |
GTIN(EAN) | 4011395293263 |
Price unit | piece |
Catalog price | 799,51 zł (650,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Movement sensor/presence detector complete |
Mounting method: | Flush-mounted |
Halogen free: | yes |
Anti-bacterial treatment: | no |
Colour: | White |
Width: | 80 mm |
Height: | 80 mm |
Depth: | 46.0 mm |
Built-in depth: | 25 mm |
Compatible with Apple HomeKit: | no |
Min. depth of built-in installation box: | 25 mm |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | no |
Model: | Movement sensor |
Sensor type: | Passive infrared |
With DALI interface: | no |
Constant light control: | no |
HVAC-control: | no |
Forced switch on: | yes |
Forced switch off: | yes |
Animal zone: | yes |
Creep-under protection: | no |
Networkable: | yes |
Optimum mounting height: | 1.1 m |
Staircase light controller: | no |
Bridging switch: | yes |
Max. reach sideways: | 3 m |
Max. reach frontally: | 5 m |
Suitable for wireless transmission: | no |
Remote operation: | no |
With remote control: | no |
Response value sensitivity adjustable: | no |
Response value luminosity adjustable: | yes |
With signal unit: | no |
Teach-function for response value luminosity: | no |
Dim function with dimmer basic element: | yes |
Suitable for ceiling mounting: | no |
Material quality: | Thermoplastic |
Surface protection: | Untreated |
Surface finishing: | Glossy |
RAL-number (similar): | 9016 |
Transparent: | no |
Degree of protection (IP): | IP20 |
Voltage type: | AC |
Frequency: | 50 - 50 Hz |
Min. switch-on time: | 60 s |
Max. duty cycle: | 10 min |
Detection angle horizontal: | 10 - 170 ° |
Response value luminosity: | 5 - 500 lx |
Max. switching power: | 2300 W |
Temperature: | 0 - 0 °C |
Number of switching zones: | 1 |
Substation input: | yes |
With alarm function: | no |
Suitable for wall mounting: | yes |
Connection type: | Screwed terminal |
Nominal voltage: | 230 V |
