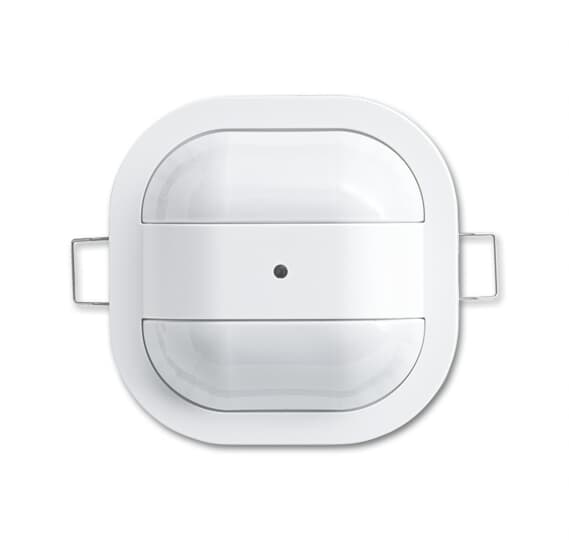

6819/30-24-500 Czujnik ruchu Uni
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CKA006800A2735 |
| GTIN(EAN) | 4011395217566 |
| Price unit | piece |
| Catalog price | 891,14 zł (724,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 159,5 g |
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Presence detector |
| Sensor type: | Passive infrared |
| Creep-under protection: | yes |
| Networkable: | yes |
| Optimum mounting height: | 2 m |
| Staircase light controller: | yes |
| Max. reach sideways: | 6 m |
| Max. reach frontally: | 6 m |
| Remote operation: | yes |
| Response value luminosity adjustable: | yes |
| Suitable for ceiling mounting: | yes |
| Mounting method: | Other |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Surface finishing: | Matt |
| Colour: | White |
| RAL-number (similar): | 9016 |
| Degree of protection (IP): | IP40 |
| Frequency: | 50 - 60 Hz |
| Min. switch-on time: | 60 s |
| Max. duty cycle: | 30 min |
| Response value luminosity: | 5 - 2000 lx |
| Max. switching power: | 2300 W |
| Temperature: | -5 - 45 °C |
| Number of switching zones: | 640 |
| Substation input: | yes |
| Width: | 94 mm |
| Height: | 94 mm |
| Depth: | 72 mm |
| Built-in depth: | 49 mm |
| Built-in diameter: | 68 mm |
| Min. depth of built-in installation box: | 49 mm |
| Detection angle horizontal: | 90 - 360 ° |
| With DALI interface: | no |
| Constant light control: | no |
| HVAC-control: | no |
| Forced switch on: | yes |
| Forced switch off: | yes |
| Animal zone: | no |
| Bridging switch: | no |
| Suitable for wireless transmission: | no |
| With remote control: | no |
| Response value sensitivity adjustable: | no |
| With signal unit: | no |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Anti-bacterial treatment: | no |
| Transparent: | no |
| Pivoting range sensor, horizontal: | 0 - 0 ° |
| Pivoting range sensor, vertical: | 0 - 0 ° |
| With alarm function: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Suitable for wall mounting: | no |
| Nominal voltage: | 230 - 230 V |
