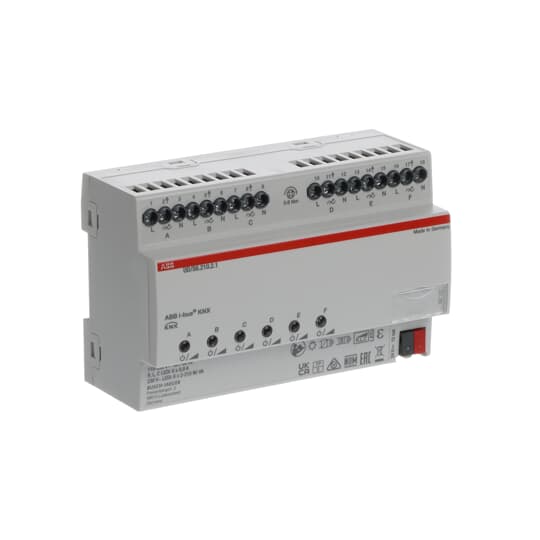

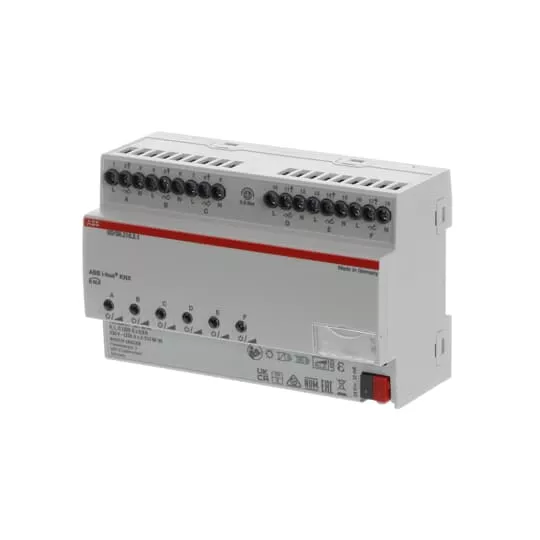

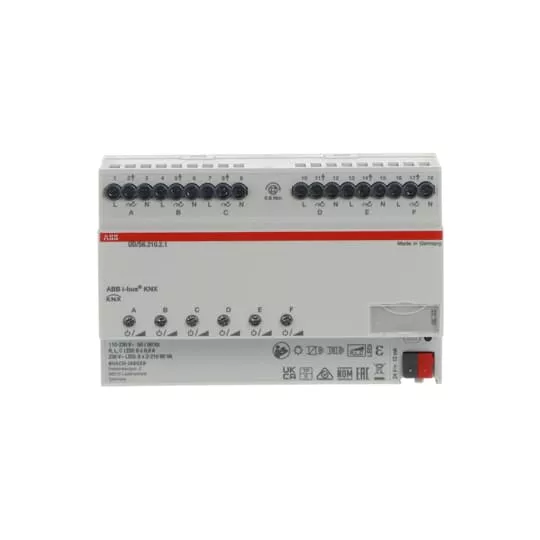

UD/S6.210.2.1 Uni Dim Actuator 6x210W
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CKA006197A0049 |
GTIN(EAN) | 4011395251881 |
Price unit | piece |
Catalog price | 2 196,50 zł (1 785,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 459 g |
ETIM class: | Dimming actuator for bus system |
Bus system KNX: | yes |
Bus system KNX-RF (Radio Frequent): | no |
Bus system radio frequent: | no |
Bus system LON: | no |
Bus system Powernet: | no |
Other bus systems: | None |
Radio frequent bidirectional: | no |
Model: | Dimming actuator |
Mounting method: | DRA (DIN-rail adapter) |
Width in number of modular spacings: | 8 |
With bus connection: | no |
Bus module detachable: | no |
Substation input: | no |
Local operation/hand operation: | yes |
With LED indication: | no |
Number of outputs: | 6 |
Output power: | 2 - 210 W |
Power boost suitable: | no |
Type of load: | Universal and LED Retrofit |
Voltage: | 110 - 230 V |
Parallel-service possible: | yes |
Frequency: | 50 - 60 Hz |
Degree of protection (IP): | IP20 |
Min. depth of built-in installation box: | 63.5 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-28 14:55:40 |
Files to download: | |
External links: |
