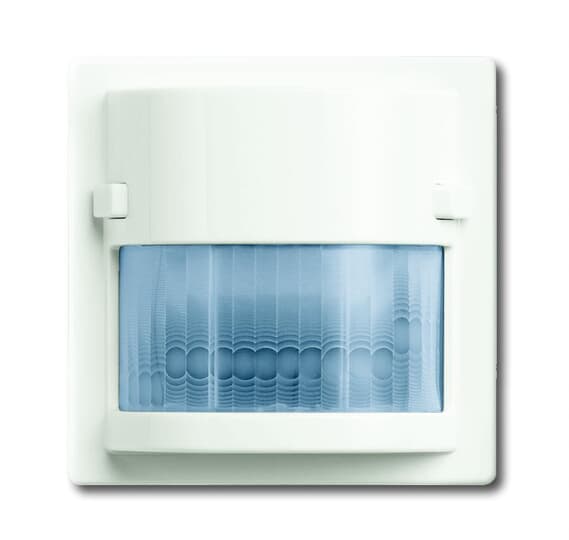

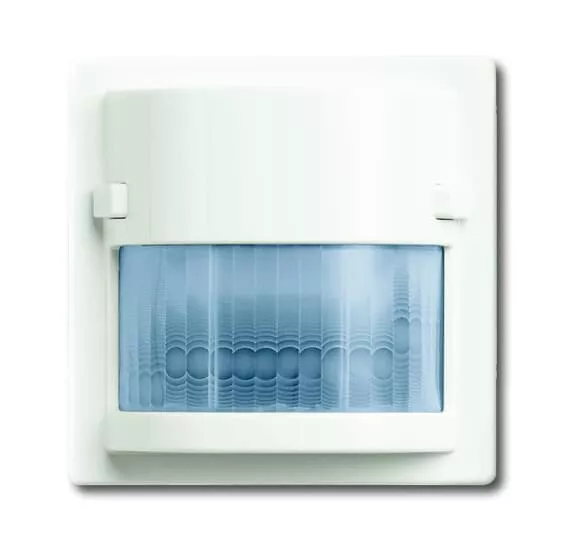

6122/02-884-500 CZUJNIK RUCHU 180O - SENSOR KOMFORT WATCHDOG 180 COMFORT FM -KNX-
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CKA006132A0292 |
GTIN(EAN) | 4011395140697 |
Price unit | piece |
Catalog price | 989,09 zł (804,14 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 35 g |
ETIM class: | Movement sensor for bus system |
Other bus systems: | None |
Surface finishing: | Matt |
Detection angle vertical: | -40 - -5 ° |
Detection angle horizontal: | 0 - 180 ° |
Model: | Movement sensor |
Material: | Plastic |
Surface protection: | Lacquered |
Max. reach frontally: | 10 m |
Bus system Powernet: | no |
Bus system KNX: | yes |
Material quality: | Thermoplastic |
Staircase light controller: | yes |
RAL-number (similar): | 9016 |
Colour: | White |
Number of channels: | 4 |
Optimum mounting height: | 0.8 m |
Min. depth of built-in installation box: | 33 mm |
Max. duty cycle: | 17 min |
Min. switch-on time: | 10 s |
Mounting method: | Flush-mounted |
Bus system KNX-RF (Radio Frequent): | no |
Bus system radio frequent: | no |
Bus system LON: | no |
With bus connection: | no |
Width: | 63 mm |
Height: | 63 mm |
Depth: | 40 mm |
Built-in depth: | 33 mm |
