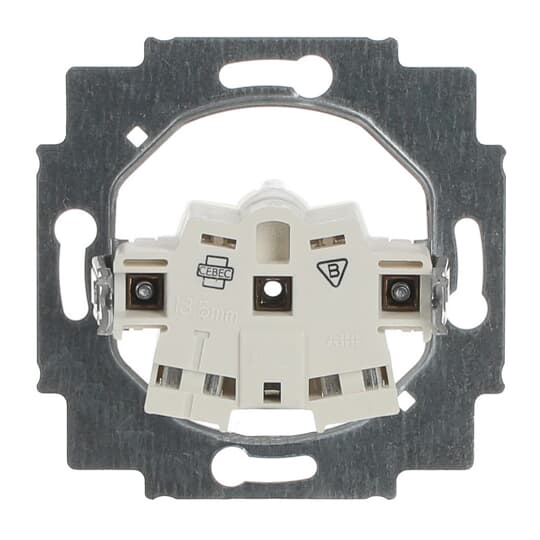

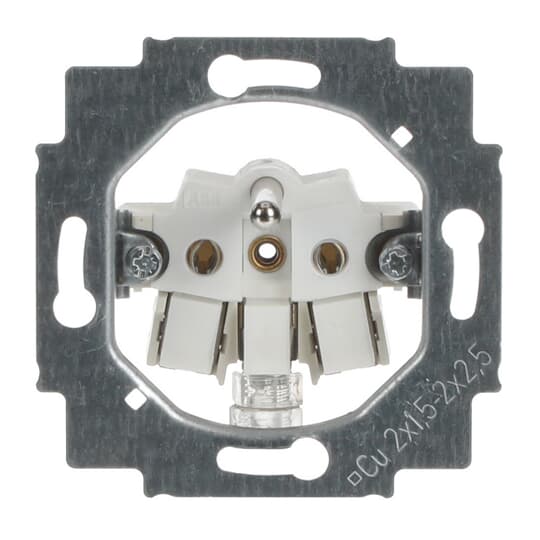

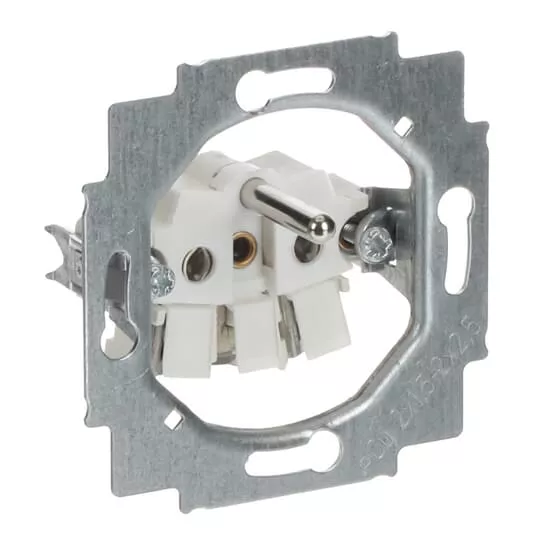

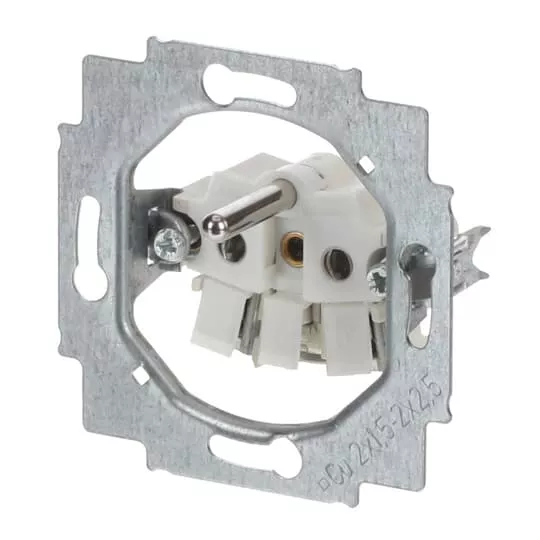

20 M-500 MECHANIZM GNIAZDA Z BOLCEM 230V
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CKA002017A0854 |
GTIN(EAN) | 4011395120125 |
Price unit | piece |
Catalog price | 19,86 zł (16,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 49 g |
ETIM class: | Socket outlet |
Number of active contacts (round): | 2 |
With signal lamp: | no |
Number of units: | 1 |
Number of modules (module system): | 1 |
Number of phases: | 1 |
Imprint/indication: | None |
Connection type: | Push-in clamp |
With hinged lid: | no |
With enhanced contact protection: | no |
Label space/information surface: | no |
Transparent: | no |
Lockable: | no |
Eject-mechanism: | no |
Insulated mounting: | yes |
With function lighting: | no |
With orientation lighting: | no |
Over voltage protection: | no |
Fault current protection: | no |
With miniature fuse: | no |
Special power supply: | No special power supply |
Mounting method: | Flush-mounted |
Type of fastening: | Mounting with claw and screw |
Material: | Plastic |
Material quality: | Duroplast |
Halogen free: | yes |
Surface protection: | Untreated |
Surface finishing: | Glossy |
Anti-bacterial treatment: | no |
With on/off switch: | no |
With loop through function: | yes |
Rotated central insert: | no |
Nominal current: | 16 A |
Nominal voltage: | 250 V |
Suitable for degree of protection (IP): | IP20 |
Impact strength: | IK00 |
Device width: | 71 mm |
Device height: | 71 mm |
Device depth: | 32 mm |
Min. depth of built-in installation box: | 31 mm |
Model: | Earthing pin |
Number of active contacts (flat): | 0 |
Metallic colour: | no |
Rated fault current: | 0 mA |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | no |
Protective contact: | Round |
Number of active contacts (square): | 0 |
