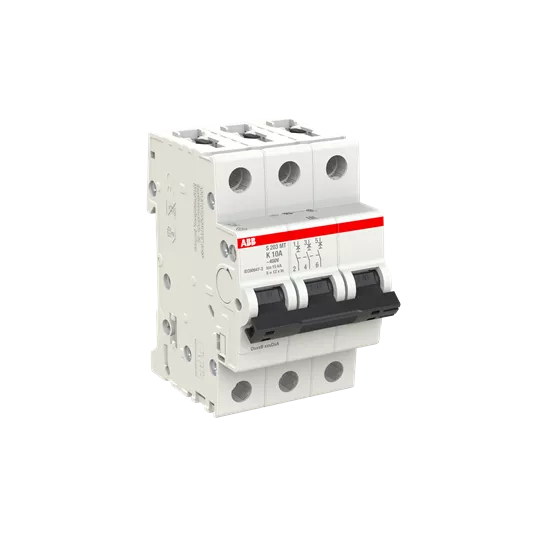

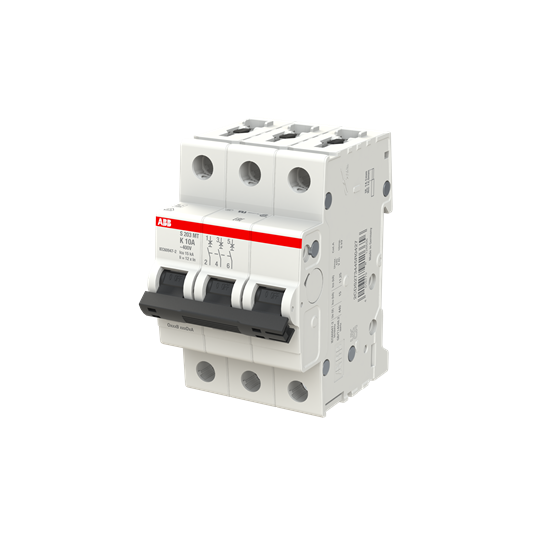

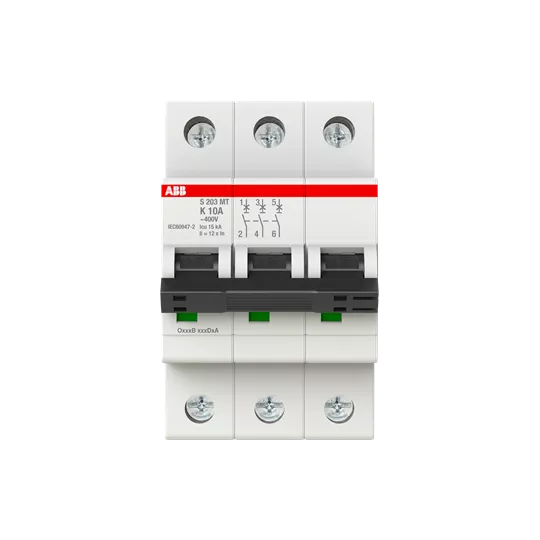

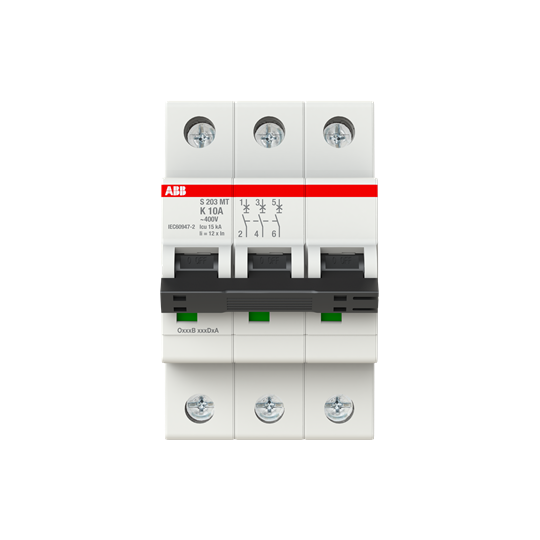

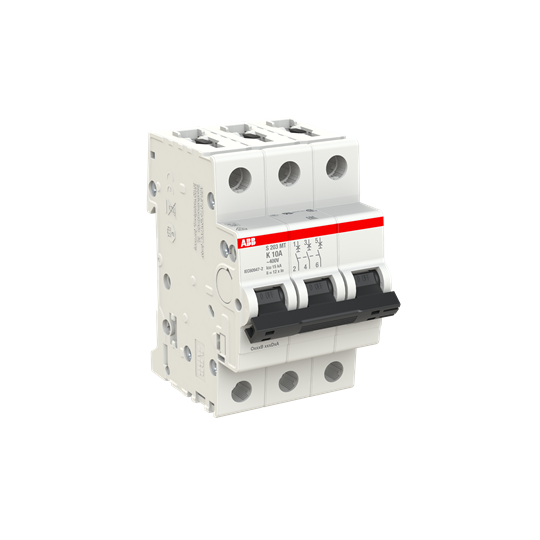

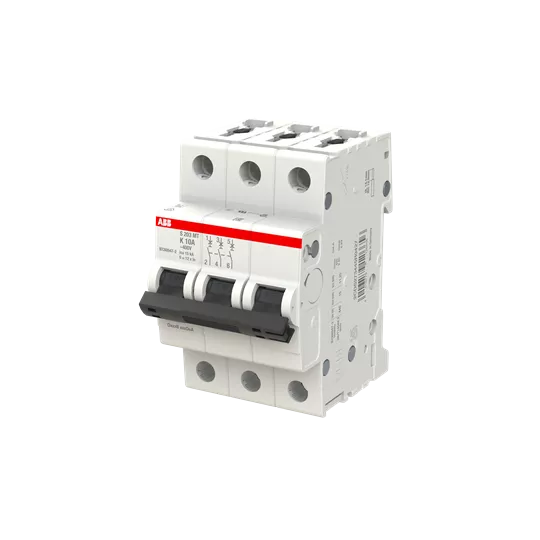

S203MT-K10 wyłącznik nadmiarowo-prądowy
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CDS273445R0427 |
GTIN(EAN) | 4016779126656 |
Price unit | piece |
Catalog price | 870,40 zł (707,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 375 g |
ETIM class: | Miniature circuit breaker (MCB) |
Built-in depth: | 69 mm |
Release characteristic: | K |
Number of poles (total): | 3 |
Number of protected poles: | 3 |
Rated current: | 10 A |
Rated insulation voltage Ui: | 440 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Voltage type: | AC |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 15 kA |
Frequency: | 50 - 60 Hz |
Current limiting class: | 3 |
Flush-mounted installation: | no |
Concurrently switching neutral conductor: | no |
Over voltage category: | 3 |
Pollution degree: | 3 |
Additional equipment possible: | yes |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -40 - 70 °C |
Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
Explosion-proof: | no |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 15 kA |
Rated voltage: | 440 V |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
Width in number of modular spacings: | 3 |
Connectable conductor cross section solid-core: | 0.75 - 35 mm² |
