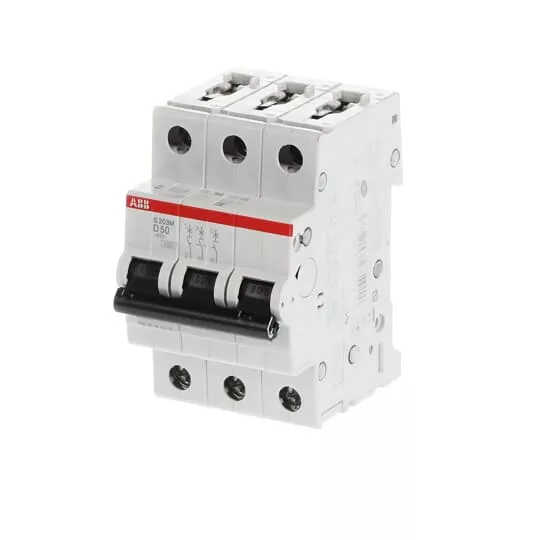

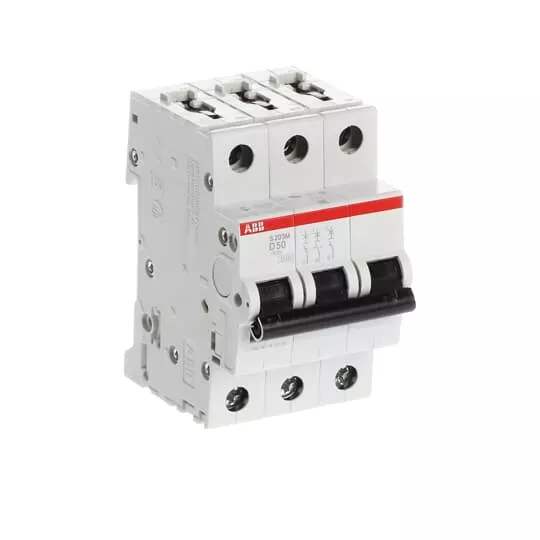

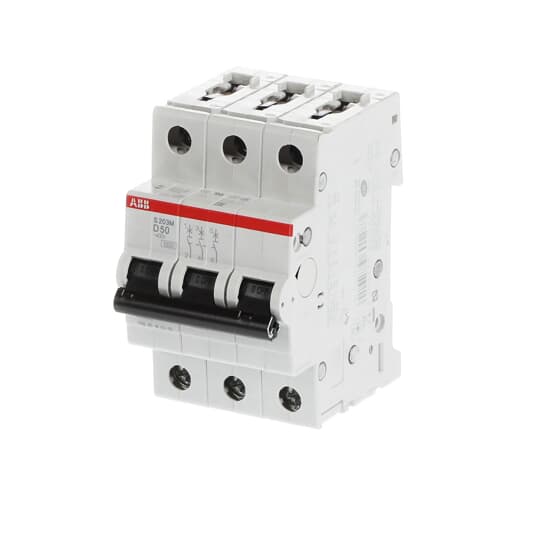

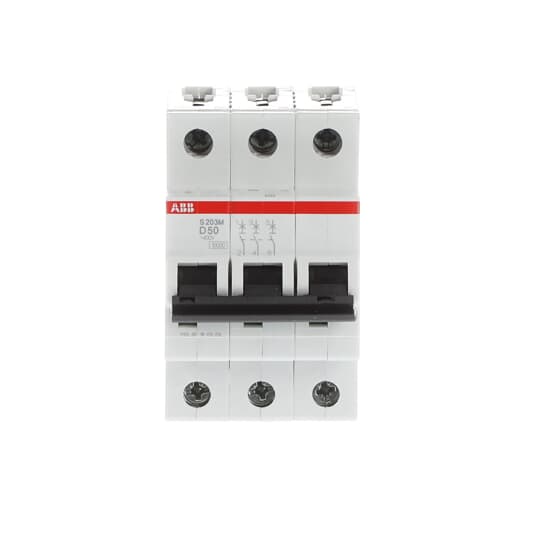

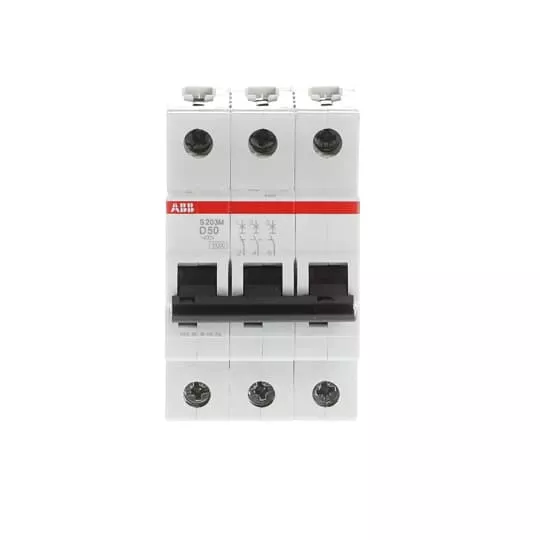

S203M-D50 wyłącznik nadmiarowo-prądowy | 3P | char. D | 50A | 10kA | AC |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CDS273001R0501 |
| GTIN(EAN) | 4016779601283 |
| Price unit | piece |
| Catalog price | 768,11 zł (624,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 375 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Built-in depth: | 69 mm |
| Release characteristic: | D |
| Number of poles (total): | 3 |
| Number of protected poles: | 3 |
| Rated current: | 50 A |
| Rated voltage: | 400 V |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Voltage type: | Other |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 25 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 15 kA |
| Frequency: | 50 - 60 Hz |
| Current limiting class: | 3 |
| Flush-mounted installation: | no |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Additional equipment possible: | yes |
| Width in number of modular spacings: | 3 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 55 °C |
| Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
| Connectable conductor cross section solid-core: | 0.75 - 35 mm² |
| Explosion-proof: | no |
| Power loss: | 8.7 W |
