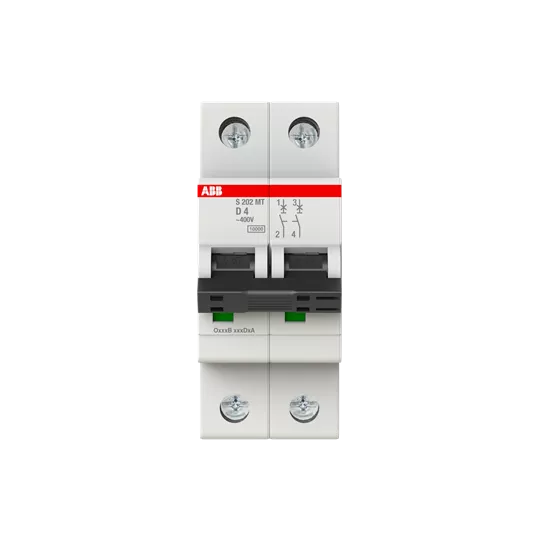

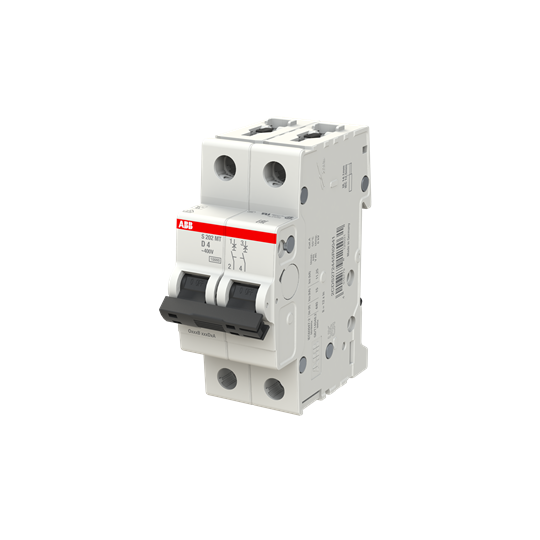

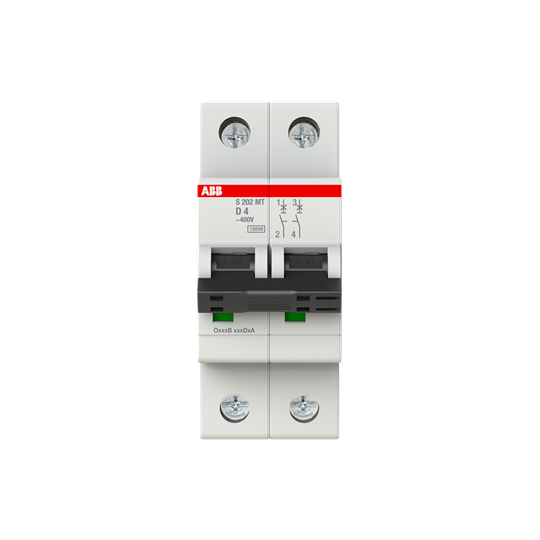

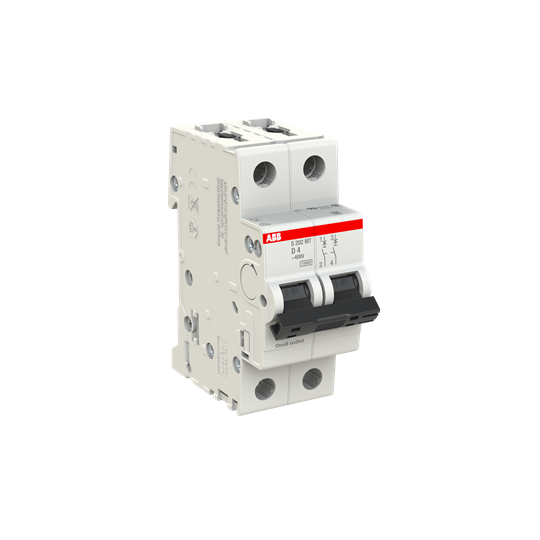

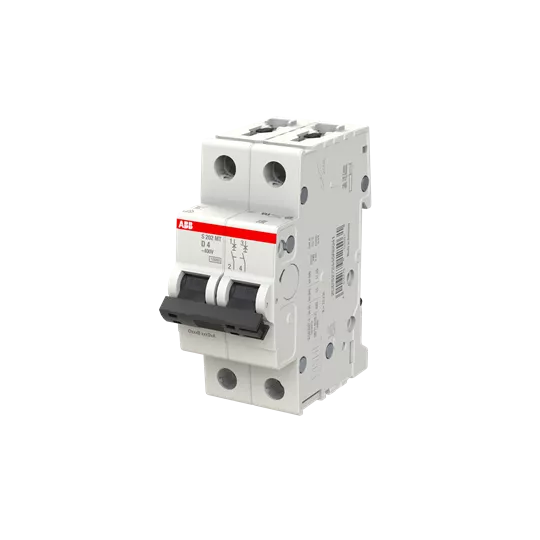

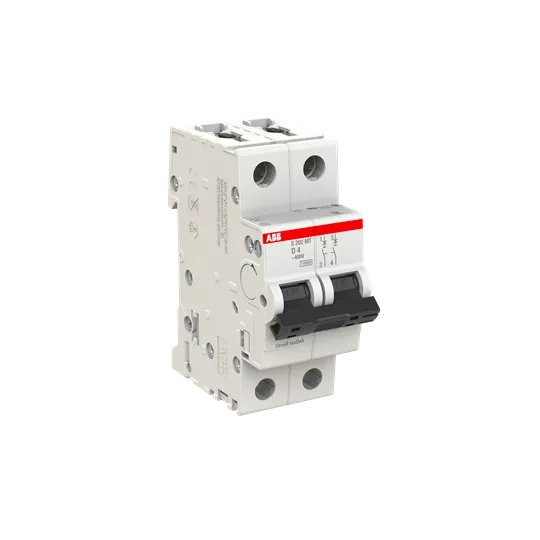

S202MT-D4 wyłącznik nadmiarowo-prądowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CDS272445R0041 |
| GTIN(EAN) | 4016779125031 |
| Price unit | piece |
| Catalog price | 687,78 zł (559,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Built-in depth: | 69 mm |
| Release characteristic: | D |
| Number of poles (total): | 2 |
| Number of protected poles: | 2 |
| Rated current: | 4 A |
| Rated voltage: | 400 V |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Voltage type: | Other |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 15 kA |
| Frequency: | 50 - 60 Hz |
| Current limiting class: | 3 |
| Flush-mounted installation: | no |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -40 - 70 °C |
| Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
| Explosion-proof: | no |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 15 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Width in number of modular spacings: | 2 |
| Connectable conductor cross section solid-core: | 0.75 - 35 mm² |
| Power loss: | 3.4 W |
