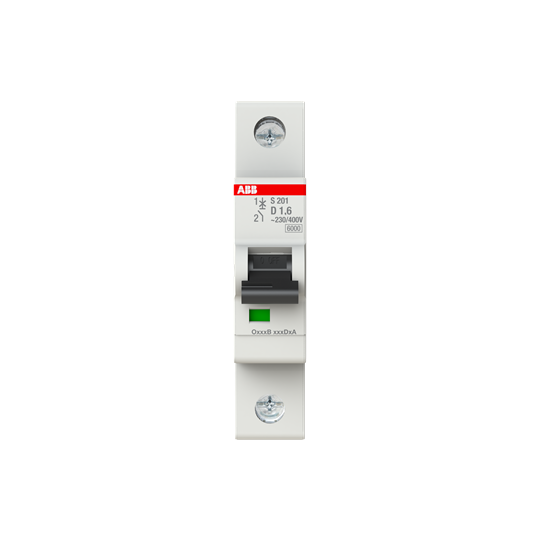

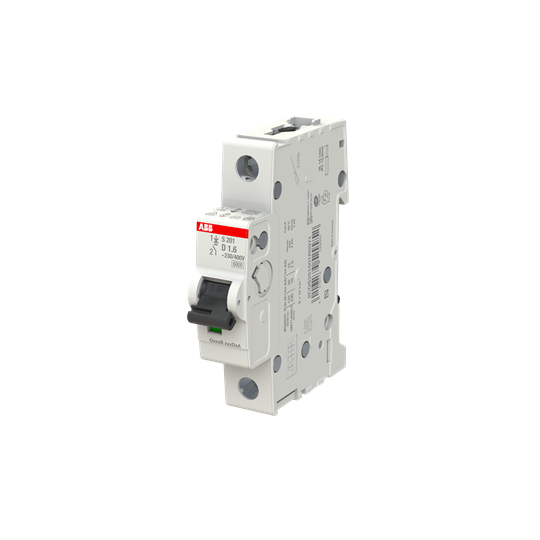

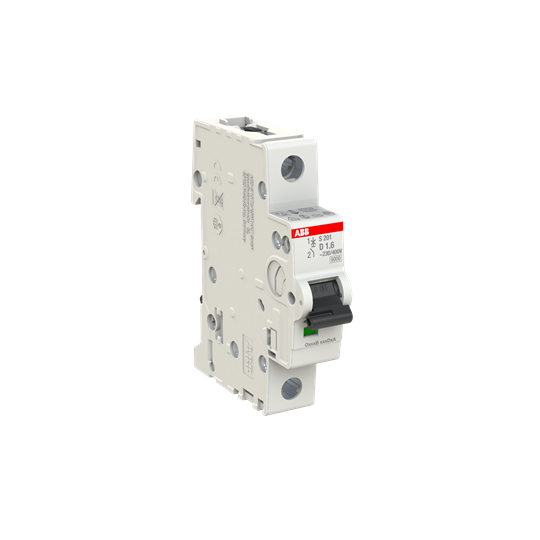

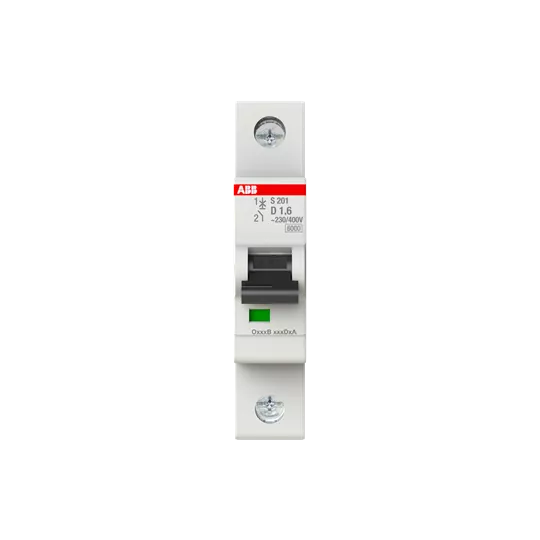

S201-D1.6 wyłącznik nadmiarowo-prądowy | 1P | char. D | 1.6A | 6kA | AC |
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CDS251001R0971 |
GTIN(EAN) | 4016779529952 |
Price unit | piece |
Catalog price | 79,67 zł (64,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 125 g |
ETIM class: | Miniature circuit breaker (MCB) |
Built-in depth: | 69 mm |
Release characteristic: | D |
Number of poles (total): | 1 |
Number of protected poles: | 1 |
Rated current: | 1.6 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 440 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
Voltage type: | AC/DC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
Frequency: | 50 - 60 Hz |
Flush-mounted installation: | no |
Concurrently switching neutral conductor: | no |
Over voltage category: | 3 |
Pollution degree: | 3 |
Additional equipment possible: | yes |
Width in number of modular spacings: | 1 |
Degree of protection (IP): | IP20 |
Ambient temperature during operating: | -25 - 55 °C |
Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
Connectable conductor cross section solid-core: | 0.75 - 35 mm² |
Explosion-proof: | no |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
Current limiting class: | 3 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-26 11:15:33 |
Files to download: | |
External links: |
