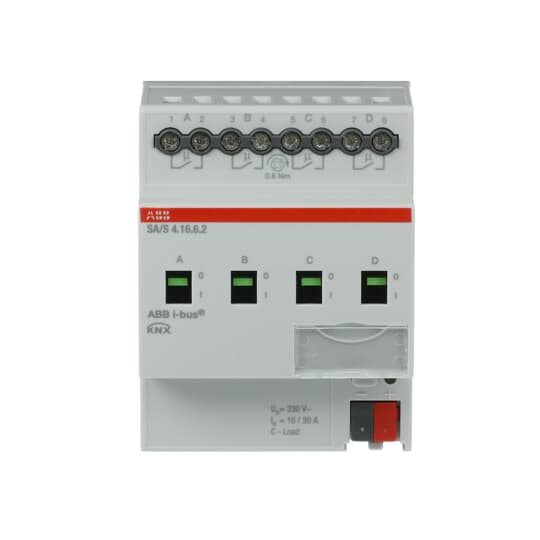

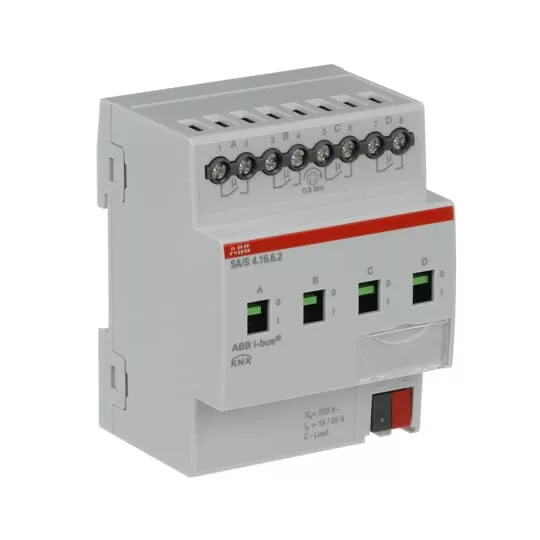

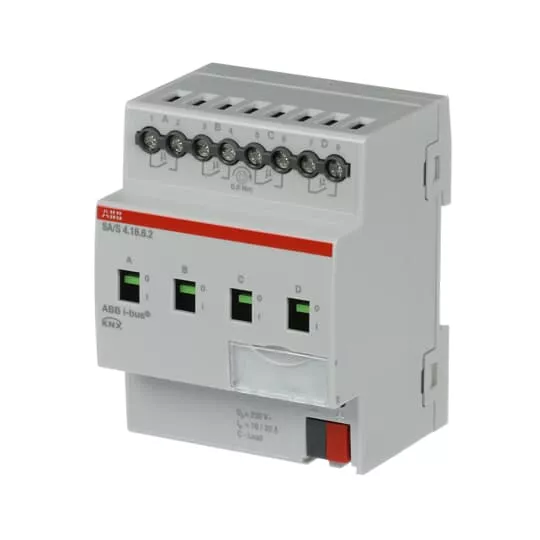

SA/S4.16.6.2 AKTOR,4-k,16A pom. ENERGII
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CDG110270R0011 |
GTIN(EAN) | 4016779066419 |
Price unit | piece |
Catalog price | 1 240,58 zł (1 008,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 296 g |
ETIM class: | Switch actuator for bus system |
Bus system KNX: | yes |
Bus system KNX-RF (Radio Frequent): | no |
Bus system radio frequent: | no |
Bus system LON: | no |
Bus system Powernet: | no |
Other bus systems: | None |
Radio frequent bidirectional: | no |
Mounting method: | DRA (DIN-rail adapter) |
Width in number of modular spacings: | 4 |
Local operation/hand operation: | yes |
With LED indication: | yes |
Max. switching power: | 3680 W |
Output power: | 3680 W |
Max. number of switching contacts: | 4 |
Max. switching current: | 20 A |
Rated current: | 20 A |
Rated operating voltage: | 230 - 230 V |
Different phases connectable: | yes |
With bus connection: | no |
Bus module detachable: | no |
Min. depth of built-in installation box: | 64.5 mm |
Modular expandability: | no |
Degree of protection (IP): | IP20 |
Suitable for C-load: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-26 11:15:14 |
Files to download: | |
External links: |
