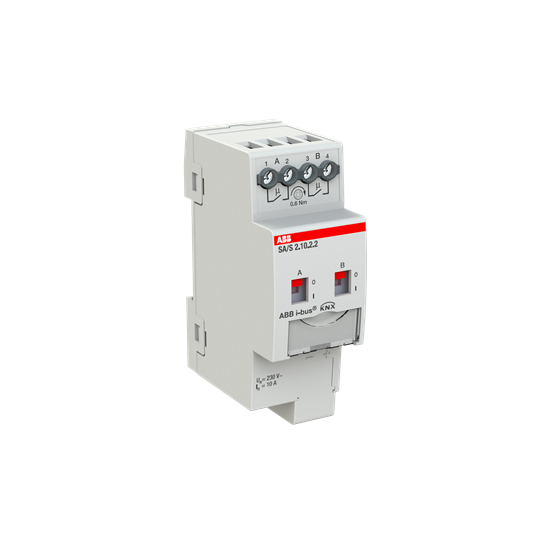

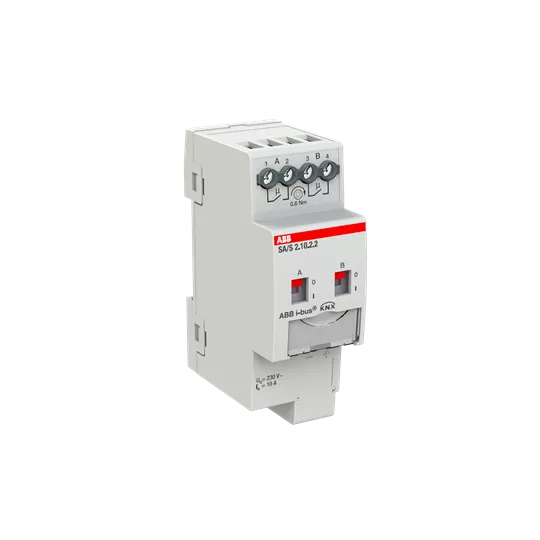

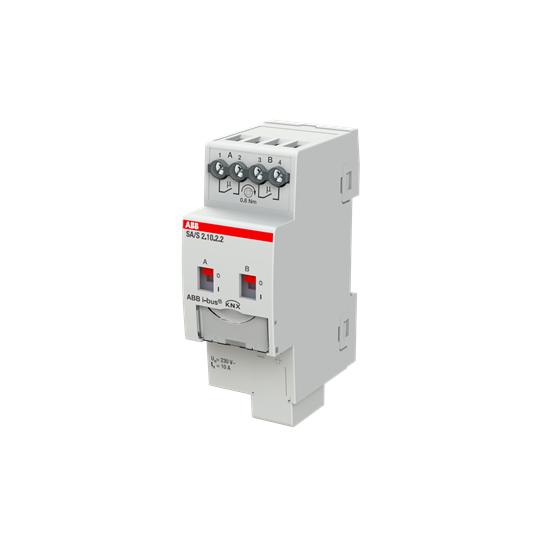

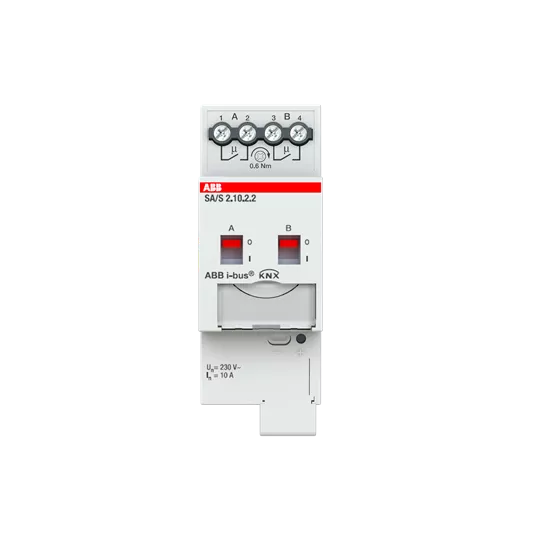

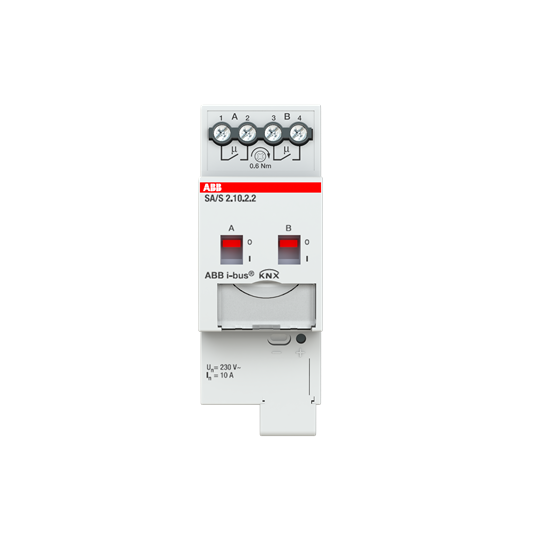

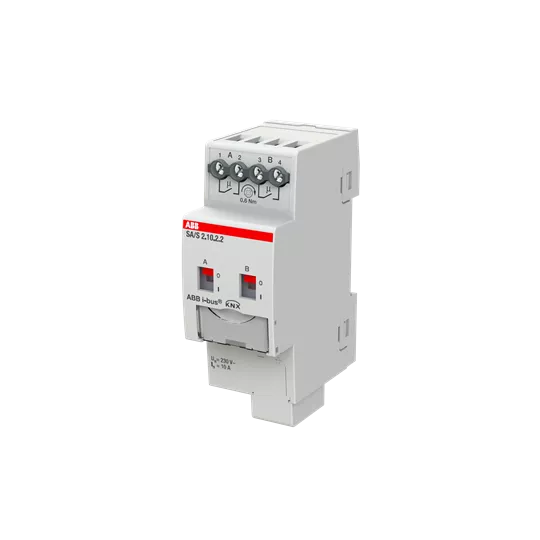

SA/S2.10.2.2 Aktor,2-krotny,10A
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CDG110257R0011 |
GTIN(EAN) | 4016779066556 |
Price unit | piece |
Catalog price | 724,29 zł (588,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 130 g |
ETIM class: | Switch actuator for bus system |
Bus system KNX: | yes |
Bus system KNX-RF (Radio Frequent): | no |
Bus system radio frequent: | no |
Bus system LON: | no |
Bus system Powernet: | no |
Other bus systems: | None |
Radio frequent bidirectional: | no |
Mounting method: | DRA (DIN-rail adapter) |
Width in number of modular spacings: | 2 |
Local operation/hand operation: | yes |
With LED indication: | yes |
Max. switching power: | 2500 W |
Output power: | 2500 W |
Max. number of switching contacts: | 2 |
Max. switching current: | 10 A |
Rated current: | 10 A |
Rated operating voltage: | 230 - 230 V |
Different phases connectable: | yes |
With bus connection: | no |
Bus module detachable: | no |
Min. depth of built-in installation box: | 64.5 mm |
Modular expandability: | no |
Degree of protection (IP): | IP20 |
Suitable for C-load: | no |
