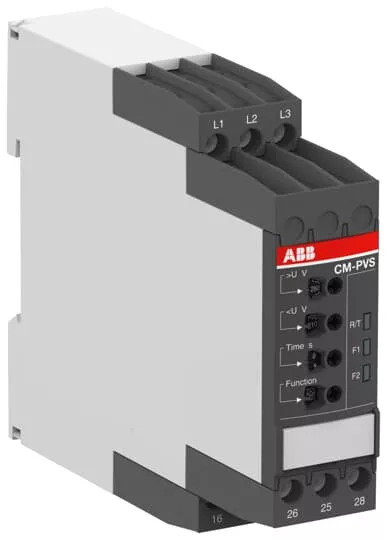

CM-PVS.41P przekaźnik monitorujący
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SVR740794R3300 |
GTIN(EAN) | 4016779852029 |
Price unit | piece |
Catalog price | 1 344,41 zł (1 093,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 131 g |
ETIM class: | Phase monitoring relay |
Type of electric connection: | Spring clamp connection |
With detachable clamps: | no |
Phase sequence monitoring: | yes |
Phase failure detection: | yes |
Function under voltage detection: | yes |
Function over voltage detection: | yes |
Phase imbalance monitoring: | no |
Voltage measuring range: | 300 - 500 V |
Min. adjustable delay-on energization time: | 0.2 s |
Max. permitted delay-on energization time: | 0.2 s |
Min. adjustable off-delay time: | 0.1 s |
Max. permitted off-delay time: | 30 s |
Number of contacts as change-over contact: | 2 |
Width: | 22.5 mm |
Height: | 85.6 mm |
Depth: | 103.7 mm |
Rated control supply voltage AC 50 Hz: | 300 - 500 V |
Rated control supply voltage AC 60 Hz: | 300 - 500 V |
Voltage type for actuating: | AC |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
