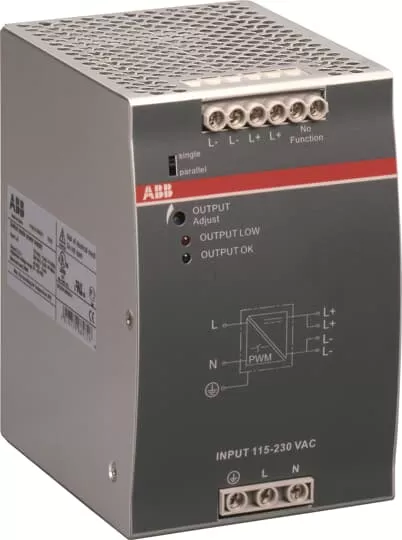

CP-E 48/5.0 zasilacz impulsowy wej:115/230VAC wyj: 48VDC/5A
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SVR427034R2000 |
GTIN(EAN) | 4016779669726 |
Price unit | piece |
Catalog price | 1 755,22 zł (1 427,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1,322 kg |
ETIM class: | DC-power supply |
Voltage type (supply voltage): | AC/DC |
Secondary voltage adjustable: | no |
Nominal value output voltage 1: | 48 V |
Nominal value output current 1: | 5 A |
Short-circuit-proof: | yes |
Rated supply voltage AC 50 Hz: | 90 - 132 V |
Rated supply voltage AC 60 Hz: | 90 - 132 V |
Rated supply voltage DC: | 210 - 375 V |
Output voltage stabilized: | yes |
Power consumption: | 267 VA |
Power output: | 240 W |
Stabilized: | yes |
Type of electric connection: | Screw connection |
Rail mounting possible: | yes |
Wall mounting possible: | no |
Modular version: | no |
Built-in width: | 83 mm |
Built-in height: | 123.6 mm |
Direct mounting possible: | no |
Width: | 83 mm |
Height: | 123.6 mm |
Depth: | 123.6 mm |
Suitable for safety functions: | no |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Degree of protection (IP): | IP20 |
Degree of protection (NEMA): | 1 |
1st secondary output voltage: | 48 - 48 V |
2nd secondary output voltage: | 0 - 0 V |
3rd secondary output voltage: | 0 - 0 V |
Max. output current 2: | 0 A |
Max. output current 3: | 0 A |
Nominal value output voltage 2: | 0 V |
Nominal value output voltage 3: | 0 V |
Nominal value output current 2: | 0 A |
Nominal value output current 3: | 0 A |
