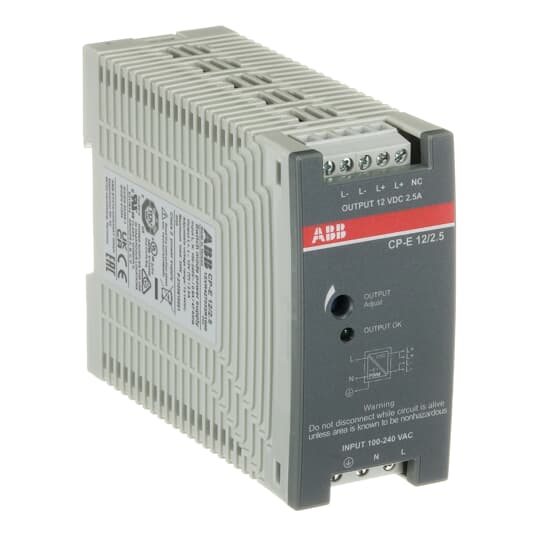

CP-E 12/2.5 zasilacz impulsowy wej:100-240VAC wyj: 12VDC/2.5A
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SVR427032R1000 |
GTIN(EAN) | 4016779656900 |
Price unit | piece |
Catalog price | 646,00 zł (525,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 287 g |
ETIM class: | DC-power supply |
Voltage type (supply voltage): | AC/DC |
Secondary voltage adjustable: | no |
Nominal value output voltage 1: | 12 V |
Nominal value output current 1: | 2.5 A |
Short-circuit-proof: | yes |
Rated supply voltage AC 50 Hz: | 85 - 264 V |
Rated supply voltage AC 60 Hz: | 85 - 264 V |
Rated supply voltage DC: | 90 - 375 V |
Output voltage stabilized: | yes |
Power consumption: | 35.9 VA |
Power output: | 30 W |
Stabilized: | yes |
Type of electric connection: | Screw connection |
Rail mounting possible: | yes |
Wall mounting possible: | no |
Modular version: | no |
Built-in width: | 40.5 mm |
Built-in height: | 90 mm |
Direct mounting possible: | no |
Width: | 40.5 mm |
Height: | 90 mm |
Depth: | 114 mm |
Suitable for safety functions: | no |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Degree of protection (IP): | IP20 |
Degree of protection (NEMA): | 1 |
1st secondary output voltage: | 12 - 12 V |
2nd secondary output voltage: | 0 - 0 V |
3rd secondary output voltage: | 0 - 0 V |
Max. output current 2: | 0 A |
Max. output current 3: | 0 A |
Nominal value output voltage 2: | 0 V |
Nominal value output voltage 3: | 0 V |
Nominal value output current 2: | 0 A |
Nominal value output current 3: | 0 A |
