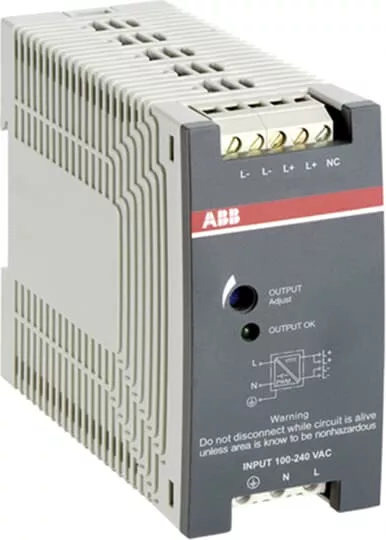

CP-E 24/2.5 zasilacz impulsowy wej:100-240VAC wyj: 24VDC/2.5A
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SVR427032R0000 |
| GTIN(EAN) | 4016779656887 |
| Price unit | piece |
| Catalog price | 642,38 zł (522,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 331 g |
| ETIM class: | DC-power supply |
| Voltage type (supply voltage): | AC/DC |
| Secondary voltage adjustable: | no |
| Nominal value output voltage 1: | 24 V |
| Nominal value output current 1: | 2.5 A |
| Short-circuit-proof: | yes |
| Rated supply voltage AC 50 Hz: | 85 - 264 V |
| Rated supply voltage AC 60 Hz: | 85 - 264 V |
| Rated supply voltage DC: | 90 - 375 V |
| Output voltage stabilized: | yes |
| Power consumption: | 69.2 VA |
| Power output: | 60 W |
| Stabilized: | yes |
| Type of electric connection: | Screw connection |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Modular version: | no |
| Built-in width: | 40.5 mm |
| Built-in height: | 90 mm |
| Direct mounting possible: | no |
| Width: | 40.5 mm |
| Height: | 90 mm |
| Depth: | 114 mm |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
| 1st secondary output voltage: | 24 - 24 V |
| 2nd secondary output voltage: | 0 - 0 V |
| 3rd secondary output voltage: | 0 - 0 V |
| Max. output current 2: | 0 A |
| Max. output current 3: | 0 A |
| Nominal value output voltage 2: | 0 V |
| Nominal value output voltage 3: | 0 V |
| Nominal value output current 2: | 0 A |
| Nominal value output current 3: | 0 A |
