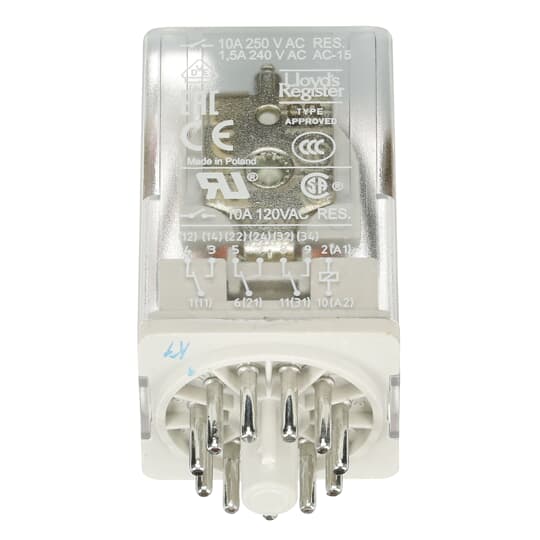

CR-U024AC3L przekaźnik A1-A2=24V AC, 3 styki c/o 250V/10A, LED
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SVR405622R0100 |
| GTIN(EAN) | 4013614498565 |
| Price unit | piece |
| Catalog price | 105,53 zł (85,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 83 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Other |
| With detachable clamps: | no |
| Nominal current: | 10 A |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarized |
| Drive, switching attitude: | Mono stable |
| Number of contacts as change-over contact: | 3 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | yes |
| Material of contact surface: | Other |
| Degree of protection (IP): | IP40 |
| Width: | 35 mm |
| Height: | 54.4 mm |
| Depth: | 35 mm |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Material contact: | Silver nickel (AgNi) |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 250 - 250 V |
| Operating voltage AC 60 Hz: | 250 - 250 V |
| Relay technology category according to IEC 61810-7: |
