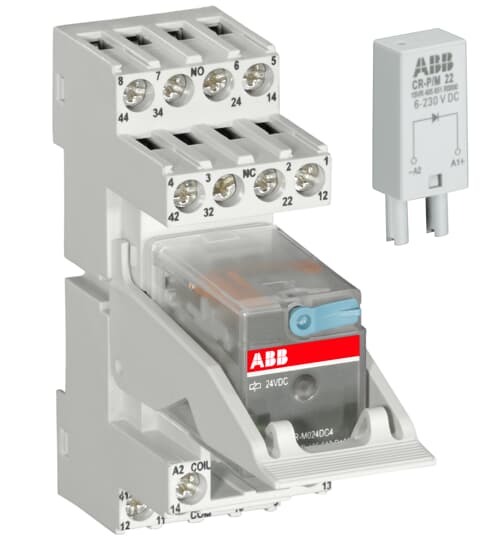

CR-M230AC4LGSS zestaw zmontowany
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SVR405618R3111 |
| GTIN(EAN) | 4013614403248 |
| Price unit | piece |
| Catalog price | 233,76 zł (190,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 106 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Nominal current: | 6 A |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarized |
| Drive, switching attitude: | Mono stable |
| Number of contacts as change-over contact: | 4 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | yes |
| Material of contact surface: | Other |
| Degree of protection (IP): | IP40 |
| Width: | 28 mm |
| Height: | 80 mm |
| Depth: | 76 mm |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Material contact: | Silver nickel (AgNi) |
| Voltage type (operating voltage): | AC/DC |
| Relay technology category according to IEC 61810-7: |
