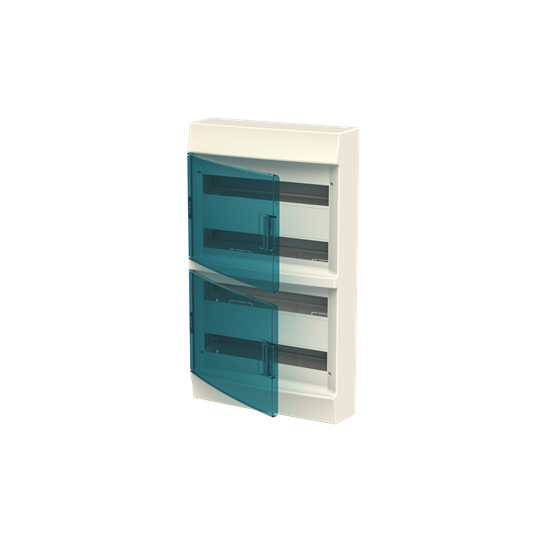

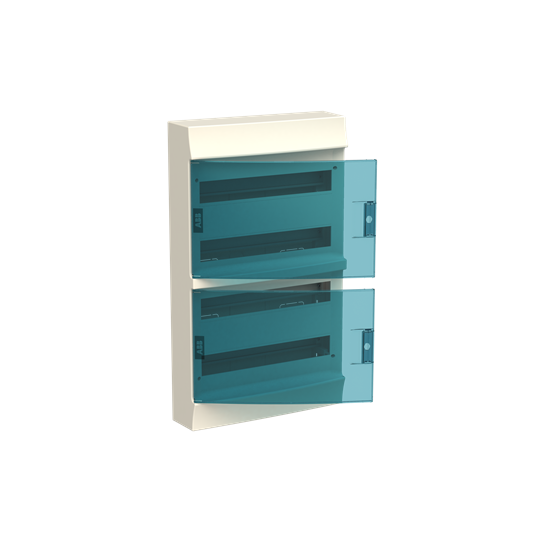

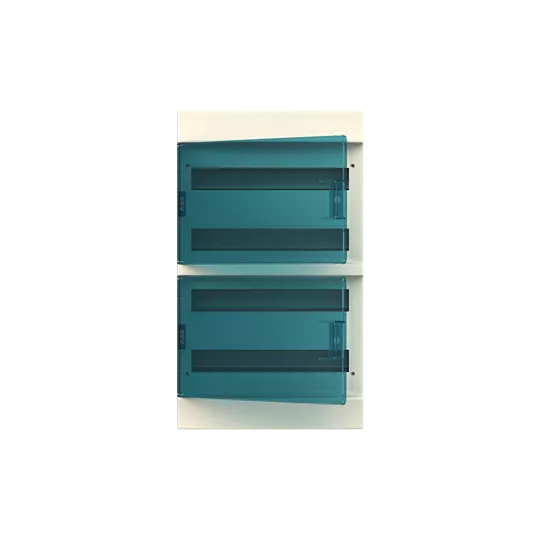

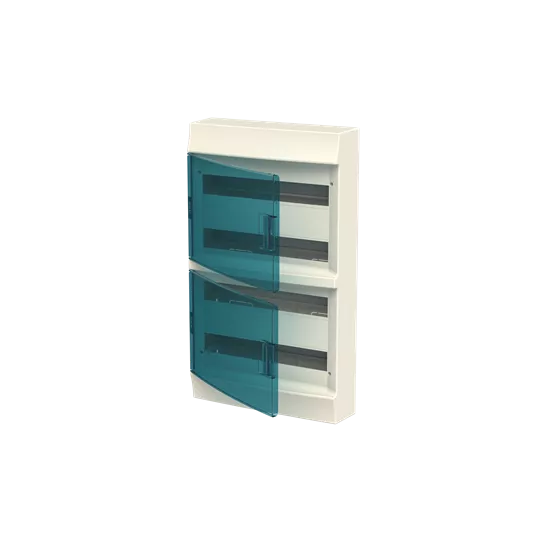

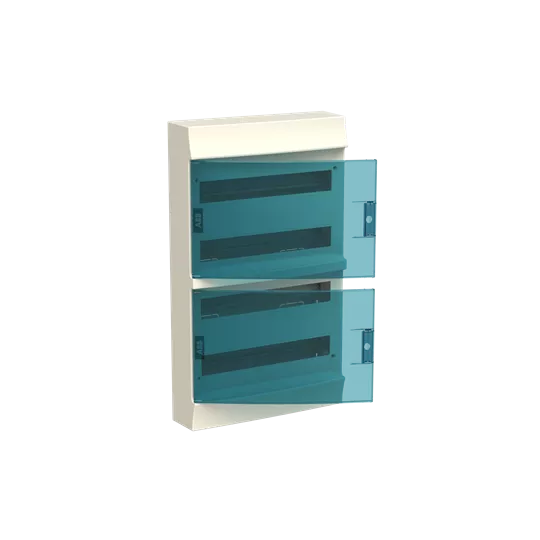

41P18X42A obudowa biała n/t, 72M, IP41, 63A, II klasa, 659x387x119mm (WxSxG) | szyny DIN | drzwi transparentne | N+PE śrubowe
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SPE007717F1121 |
| GTIN(EAN) | 8000126153606 |
| Price unit | piece |
| Catalog price | 922,50 zł (750,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,087 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Number of rows: | 4 |
| Width in number of modular spacings: | 72 |
| Type of covering: | Door |
| Cover model: | With notch |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| Height: | 119.000 mm |
| Width: | 387.000 mm |
| Depth: | 659.000 mm |
| Inner depth: | 74 mm |
| Earthing terminal block: | yes |
| Neutral terminal block: | yes |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | yes |
| EMC-version: | no |
| Colour: | White |
| RAL-number: | 9016 |
| Degree of protection (IP): | IP41 |
| With lock: | yes |
| Signal passing door: | no |
| Type of door: | Single |
