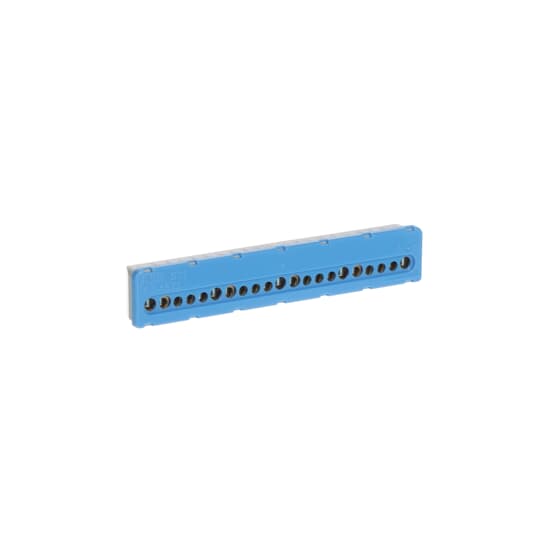

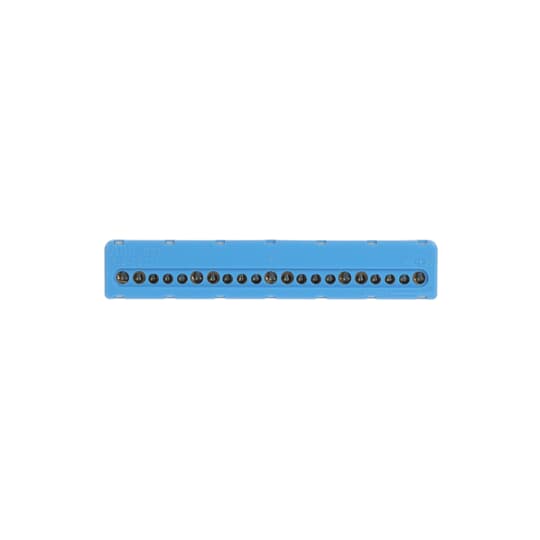

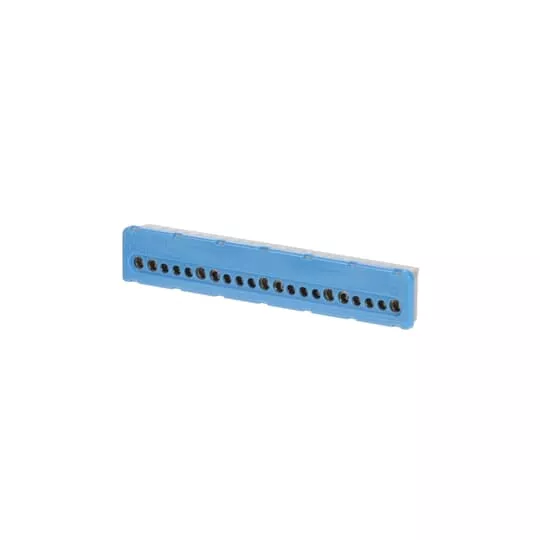

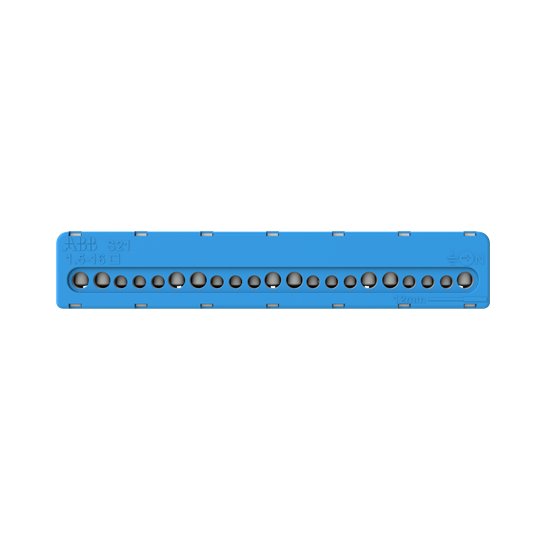

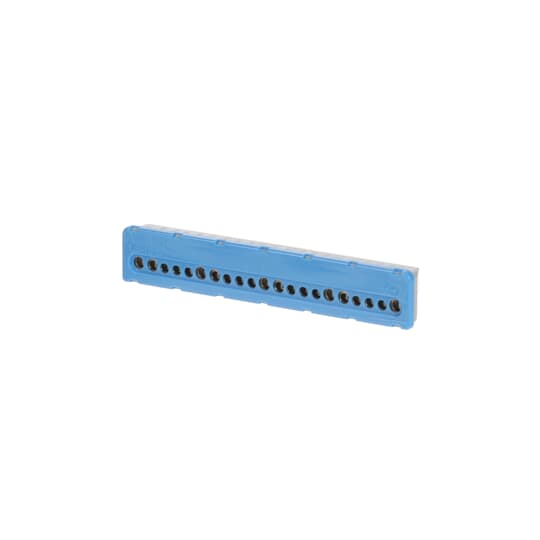

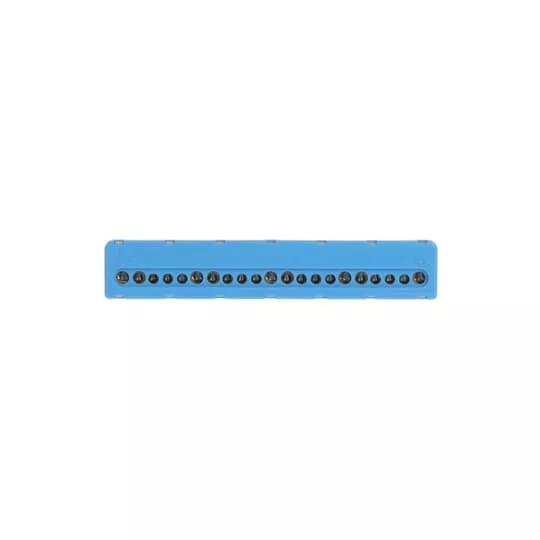

41Z60 listwa zaciskowa N, 100A, 12x6mm² (śrubowe) + 9x16mm² (śrubowe)
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SPE007715F0734 |
| GTIN(EAN) | 8712507123527 |
| Price unit | piece |
| Catalog price | 69,68 zł (56,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 86,3 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 6 - 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 6 - 16 mm² |
| Rated current In: | 100 A |
| Rated voltage: | 400 V |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 60 °C |
| Halogen free: | no |
| Colour: | Blue |
| Transparent: | no |
| Mounting method: | Direct mounting |
| Depth: | 24 mm |
| Width: | 148 mm |
| Height: | 24 mm |
