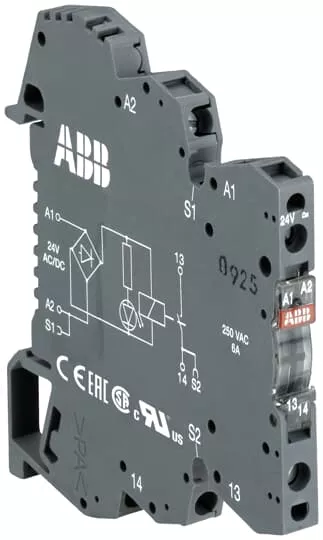

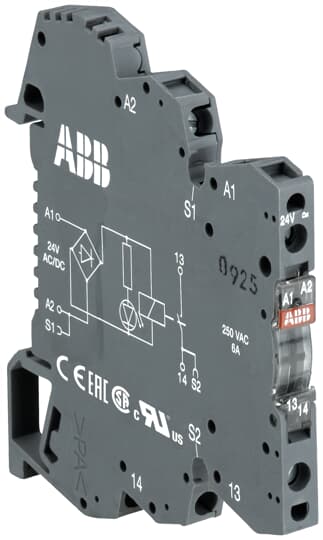

RBR121G przekaźnik A1-A2=24VDC, 1c/o, 250V/6A
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SNA645572R0000 |
GTIN(EAN) | 3472596455729 |
Price unit | piece |
Catalog price | 180,35 zł (146,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 20 g |
ETIM class: | Switching relay |
Type of electric connection: | Spring clamp connection |
With detachable clamps: | no |
Nominal current: | 6 A |
Voltage type for actuating: | DC |
Drive, polarization: | Polarized |
Drive, switching attitude: | Mono stable |
Number of contacts as change-over contact: | 1 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | yes |
With LED indication: | yes |
Material of contact surface: | Other |
Degree of protection (IP): | IP20 |
Width: | 6 mm |
Height: | 67.5 mm |
Depth: | 75 mm |
Rated control supply voltage DC: | 24 - 24 V |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Material contact: | Silver tin oxide (AgSnO2) |
Voltage type (operating voltage): | AC/DC |
Relay technology category according to IEC 61810-7: |
