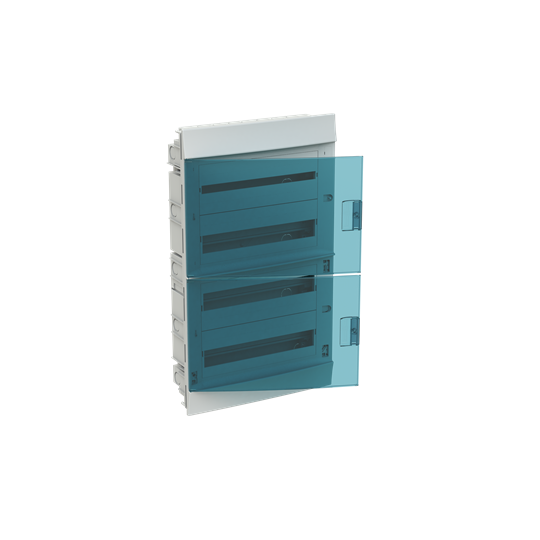

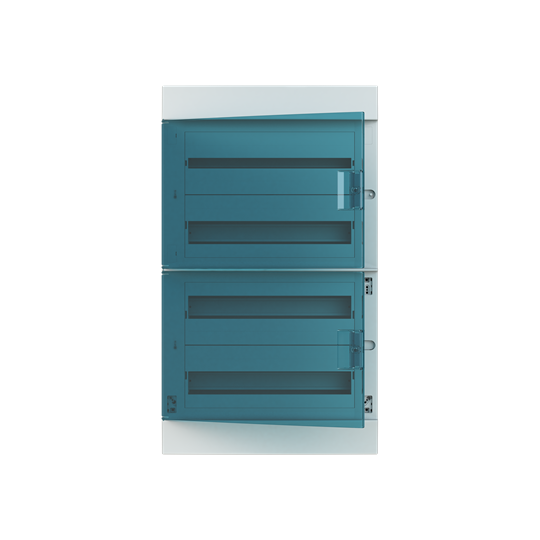

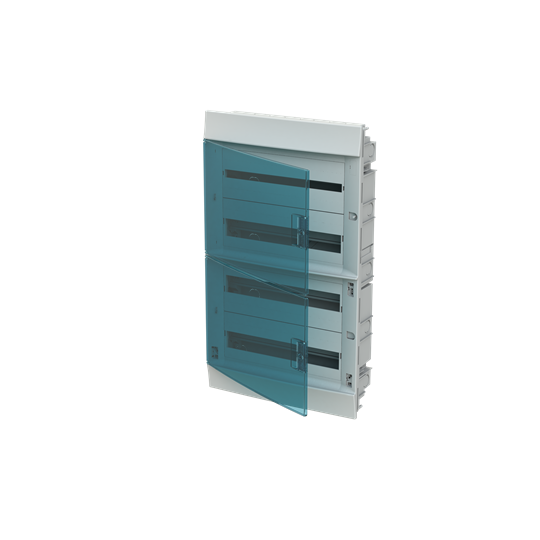

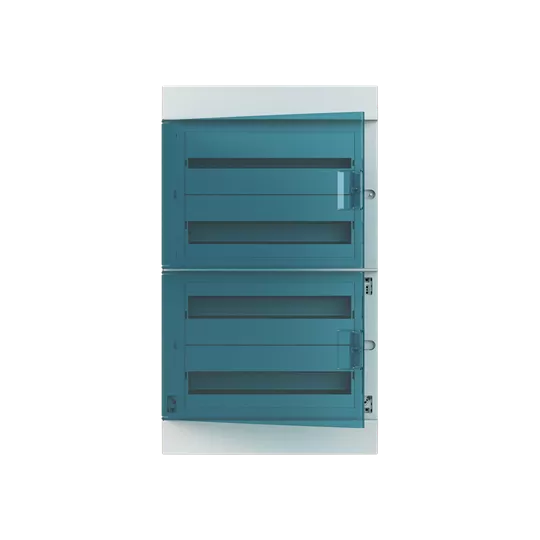

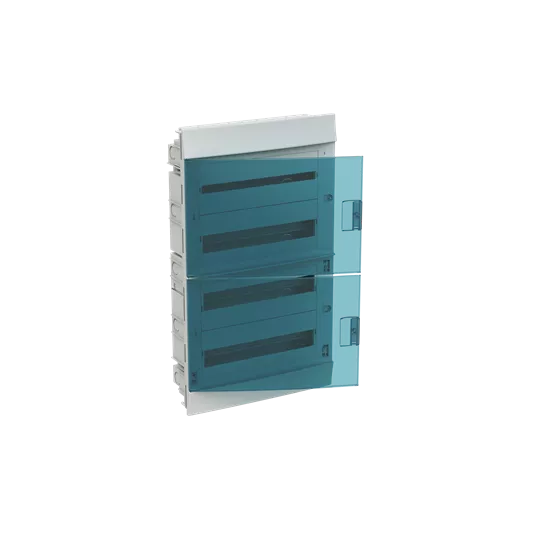

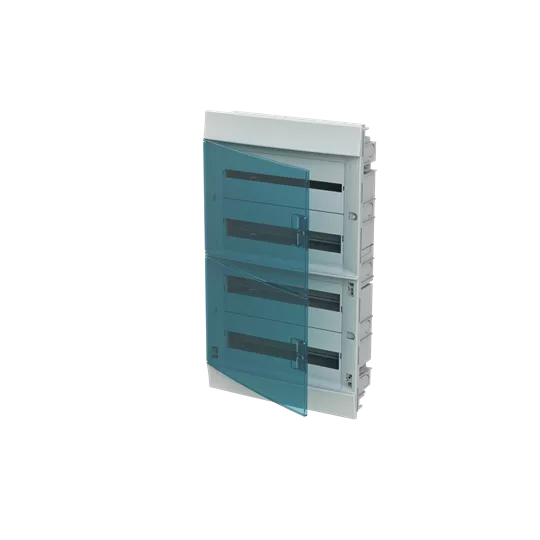

41A18X42A obudowa biała p/t, 72M, IP41, 125A, II klasa, 735x430x127mm (WxSxG) | szyny DIN | drzwi transparentne | N+PE śrubowe
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SLM004101A1210 |
GTIN(EAN) | 8000126141849 |
Price unit | piece |
Catalog price | 766,47 zł (623,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 5,3 kg |
ETIM class: | Small distribution board |
Mounting method: | Flush-mounted |
Number of rows: | 4 |
Width in number of modular spacings: | 72 |
Type of covering: | Door |
Cover model: | With notch |
Transparent cover/door: | yes |
Housing material: | Plastic |
Height: | 127.000 mm |
Width: | 430.000 mm |
Depth: | 735.000 mm |
Built-in depth: | 99 mm |
Inner depth: | 93 mm |
Earthing terminal block: | yes |
Neutral terminal block: | yes |
DIN-rail: | yes |
With mounting plate: | no |
Extension possible: | yes |
EMC-version: | no |
Colour: | White |
RAL-number: | 9016 |
Degree of protection (IP): | IP41 |
With lock: | yes |
Signal passing door: | no |
Type of door: | Single |
Type of closure: | Push button |
