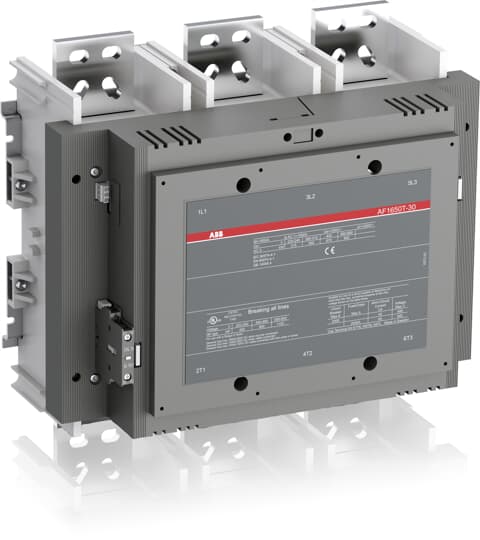

Stycznik AF1650T-30-11 220-240V, 3P, 1NO+1NC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SFL677001R9101 |
| GTIN(EAN) | 7320500381090 |
| Price unit | piece |
| Catalog price | 45 029,13 zł (36 609,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 33 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 230 - 240 V |
| Rated control supply voltage AC 60 Hz: | 230 - 240 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-1, 400 V: | 1650 A |
| Rated operation current Ie at AC-3, 400 V: | 1060 A |
| Rated operation power NEMA: | 335.5650 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 1000 - 1000 V |
| Operating voltage AC 60 Hz: | 1000 - 1000 V |
| Rated operation power at AC-3, 400 V: | 560 kW |
| Width: | 438 mm |
| Height: | 392 mm |
| Depth: | 244 mm |
