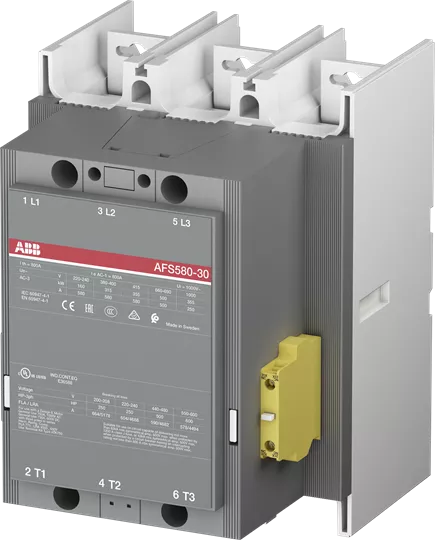

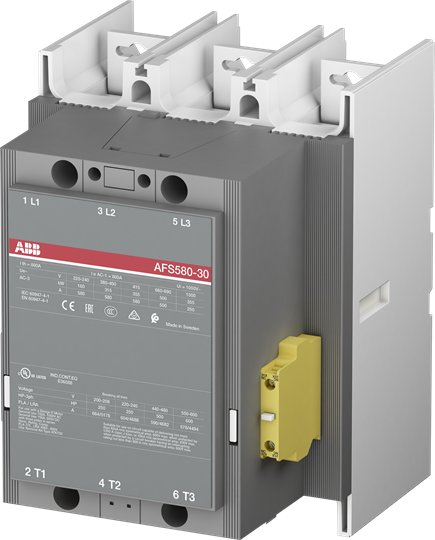

AFS580-30-12 stycznik bezpieczeństwa 250-500V, 315 kW (AC-3)
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SFL617081R7112 |
GTIN(EAN) | 7320500540824 |
Price unit | piece |
Catalog price | 19 406,94 zł (15 778,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 10 kg |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 250 - 500 V |
Rated control supply voltage AC 60 Hz: | 250 - 500 V |
Rated control supply voltage DC: | 250 - 500 V |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 800 A |
Rated operation current Ie at AC-3, 400 V: | 580 A |
Rated operation power NEMA: | 186.4250 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 2 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Operating voltage AC 50 Hz: | 1000 - 1000 V |
Operating voltage AC 60 Hz: | 1000 - 1000 V |
Rated operation power at AC-3, 400 V: | 315 kW |
Width: | 210 mm |
Height: | 283 mm |
Depth: | 242 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-25 17:21:21 |
Files to download: | |
External links: |
