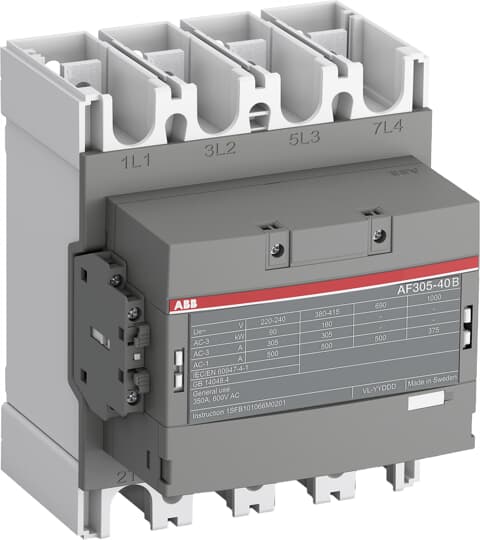

Stycznik AF305B-40-22RT-14 250-500V 50/60Hz / DC Styki pomocn. 2NO+2NZ(RT)
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SFL587262R1422 |
| GTIN(EAN) | 7320500509722 |
| Price unit | piece |
| Catalog price | 13 364,69 zł (10 865,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,7 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 250 - 500 V |
| Rated control supply voltage AC 60 Hz: | 250 - 500 V |
| Rated control supply voltage DC: | 250 - 500 V |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-1, 400 V: | 500 A |
| Rated operation current Ie at AC-3, 400 V: | 305 A |
| Rated operation power NEMA: | 37.2850 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 4 |
| Rated operation power at AC-3, 400 V: | 160 kW |
| Width: | 184 mm |
| Height: | 225 mm |
| Depth: | 180 mm |
