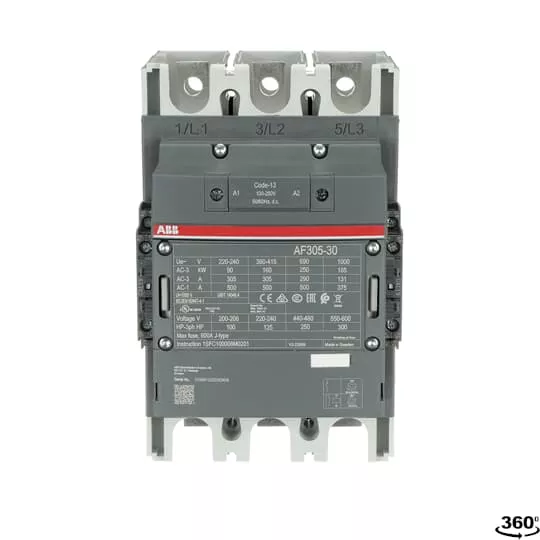

Stycznik AF305-30-22-13 100-250V a.c./d.c, 3P, 2NO+2NC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SFL587002R1322 |
| GTIN(EAN) | 7320500481783 |
| Price unit | piece |
| Catalog price | 7 024,51 zł (5 710,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,9 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 100 - 250 V |
| Rated control supply voltage AC 60 Hz: | 100 - 250 V |
| Rated control supply voltage DC: | 100 - 250 V |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-1, 400 V: | 500 A |
| Rated operation current Ie at AC-3, 400 V: | 305 A |
| Rated operation power NEMA: | 93.2125 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 1000 - 1000 V |
| Operating voltage AC 60 Hz: | 1000 - 1000 V |
| Rated operation power at AC-3, 400 V: | 160 kW |
| Width: | 140 mm |
| Height: | 225 mm |
| Depth: | 180 mm |
