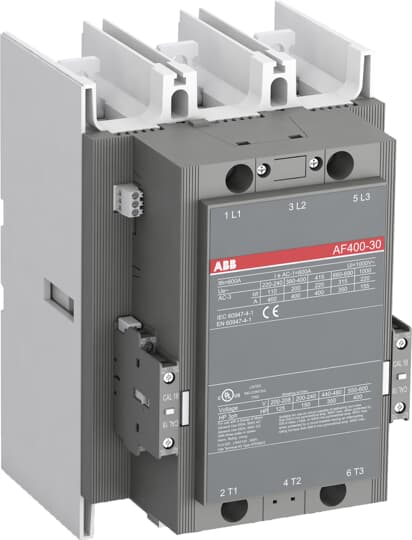

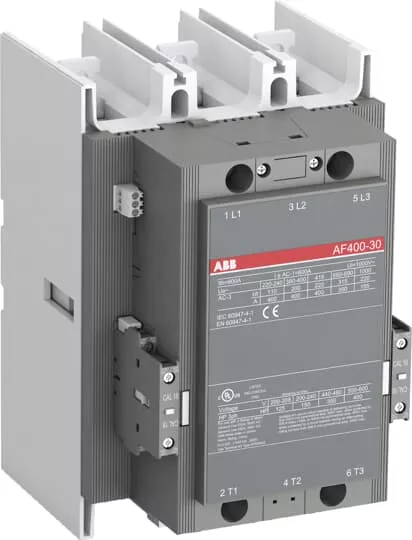

Stycznik AF400-30-22 24-60V DC, 3P, 2NO+2NC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SFL577001R6822 |
| GTIN(EAN) | 7320500217856 |
| Price unit | piece |
| Catalog price | 7 253,52 zł (5 897,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 10,6 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage DC: | 24 - 60 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 600 A |
| Rated operation current Ie at AC-3, 400 V: | 400 A |
| Rated operation power NEMA: | 111.8550 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 1000 - 1000 V |
| Operating voltage AC 60 Hz: | 1000 - 1000 V |
| Rated operation power at AC-3, 400 V: | 200 kW |
| Width: | 186 mm |
| Height: | 278 mm |
| Depth: | 216 mm |
