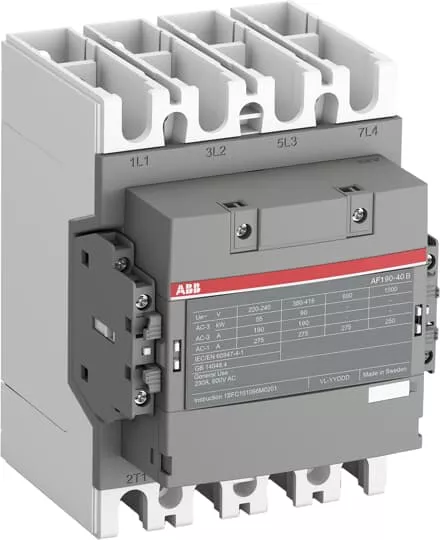

Stycznik AF190B-40-22RT-11 24-60V a.c./d.c
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SFL487262R1122 |
GTIN(EAN) | 7320500510193 |
Price unit | piece |
Catalog price | 7 459,69 zł (6 064,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 3,3 kg |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 24 - 60 V |
Rated control supply voltage AC 60 Hz: | 24 - 60 V |
Rated control supply voltage DC: | 24 - 60 V |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 275 A |
Rated operation current Ie at AC-3, 400 V: | 190 A |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 2 |
Number of auxiliary contacts as normally closed contact: | 2 |
Type of electrical connection of main circuit: | Rail connection |
Number of normally open contacts as main contact: | 4 |
Rated operation power NEMA: | 44.7420 kW |
Number of normally closed contacts as main contact: | 0 |
