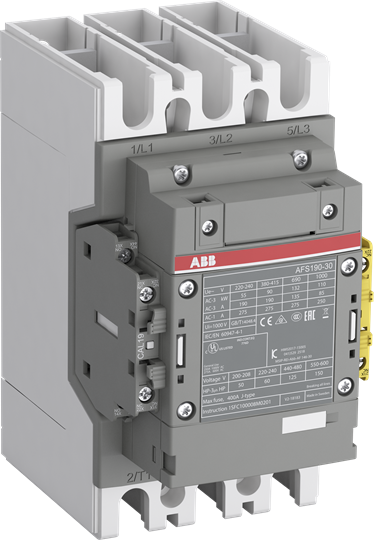

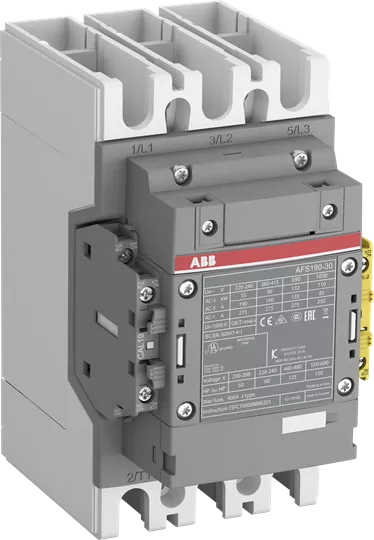

AFS190-30-12-11 stycznik bezpieczeństwa 24-60V, 90 kW (AC-3)
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SFL487082R1112 |
GTIN(EAN) | 7320500540503 |
Price unit | piece |
Catalog price | 5 721,06 zł (4 651,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 2,4 kg |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 24 - 60 V |
Rated control supply voltage AC 60 Hz: | 24 - 60 V |
Rated control supply voltage DC: | 20 - 60 V |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 275 A |
Rated operation current Ie at AC-3, 400 V: | 190 A |
Rated operation power NEMA: | 44.7420 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 2 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Operating voltage AC 50 Hz: | 1000 - 1000 V |
Operating voltage AC 60 Hz: | 1000 - 1000 V |
Rated operation power at AC-3, 400 V: | 90 kW |
Width: | 105 mm |
Height: | 196 mm |
Depth: | 152 mm |
