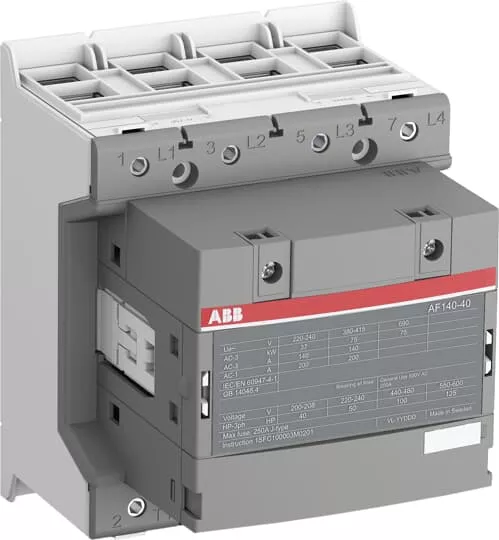

Stycznik AF140-40-00-11 24-60V a.c./d.c
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SFL447101R1100 |
| GTIN(EAN) | 7320500503607 |
| Price unit | piece |
| Catalog price | 3 180,18 zł (2 585,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,05 kg |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 24 - 60 V |
| Rated control supply voltage AC 60 Hz: | 24 - 60 V |
| Rated control supply voltage DC: | 20 - 60 V |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-1, 400 V: | 200 A |
| Rated operation current Ie at AC-3, 400 V: | 140 A |
| Modular version: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 4 |
| Rated operation power NEMA: | 14.9140 kW |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Rated operation power at AC-3, 400 V: | 75 kW |
| Width: | 120 mm |
| Height: | 150 mm |
| Depth: | 128 mm |
