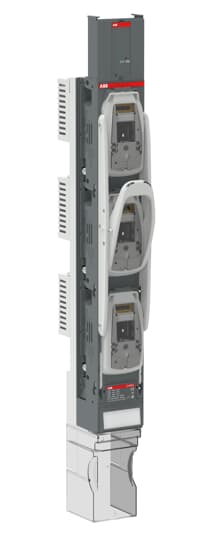

ZHBM3-3P-V-EFM rozłącznik 630A do przekładników, rozłączany 3-biegunowo, zaciski V, monitoring wkładek
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SEP620023R3021 |
| GTIN(EAN) | 7025840091653 |
| Price unit | piece |
| Catalog price | 1 735,26 zł (1 410,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5 kg |
| ETIM class: | Fuse switch disconnector |
| Version as main switch: | no |
| Version as safety switch: | no |
| Max. rated operation voltage Ue AC: | 800 V |
| Rated permanent current Iu: | 630 A |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Suitable for fuses: | NH3 |
| Number of poles: | 3 |
| With error protection: | no |
| Type of electrical connection of main circuit: | Cable clamp |
| Equipped with connectors: | no |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | no |
| Suitable for busbar mounting: | yes |
| Type of control element: | Other |
| Position control element: | Front side |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Version as emergency stop installation: | no |
| Degree of protection (IP), front side: | IP30 |
| Cable entry: | Bottom |
