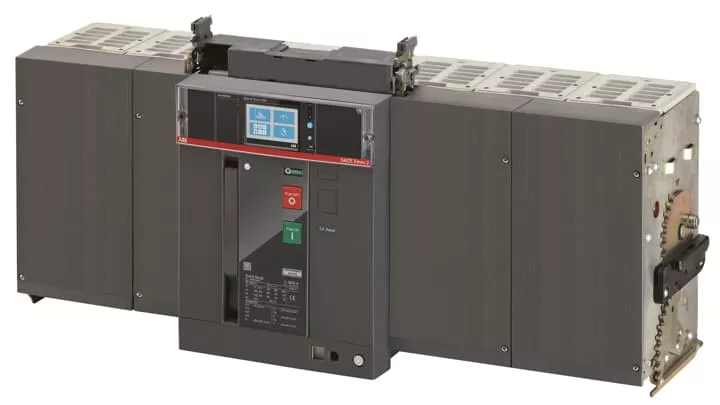

E6.2H/E9 5000 EkipHi-Tch LSIG 4pWMP 900V wyłącznik powietrzny
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SDA104638R1 |
GTIN(EAN) | 8015644067182 |
Price unit | piece |
Catalog price | 206 711,02 zł (168 057,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 134 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 5000 A |
Overload release current setting: | 2000.0 - 5000 A |
Adjustment range short-term delayed short-circuit release: | 3000.0 - 50000 A |
Adjustment range undelayed short-circuit release: | 7500.0 - 75000 A |
Integrated earth fault protection: | yes |
Type of electrical connection of main circuit: | Connection at separate chassis part |
Device construction: | Built-in device slide-in technique (withdrawable) |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as change-over contact: | 4 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 4 |
Position of connection for main current circuit: | Connection at separate chassis part |
Type of control element: | Push button |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP30 |
Rated voltage: | 900 - 900 V |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
