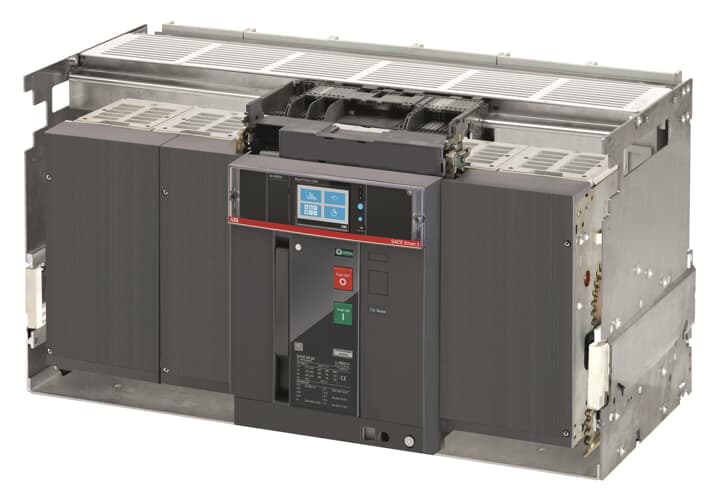

E6.2H/E9 5000 Ekip Touch LSI 3p WMP 900V wyłącznik powietrzny
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SDA104629R1 |
| GTIN(EAN) | 8015644067090 |
| Price unit | piece |
| Catalog price | 197 036,20 zł (160 192,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 120 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 5000 A |
| Overload release current setting: | 2000.0 - 5000 A |
| Adjustment range short-term delayed short-circuit release: | 3000.0 - 50000 A |
| Adjustment range undelayed short-circuit release: | 7500.0 - 75000 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Connection at separate chassis part |
| Device construction: | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as change-over contact: | 4 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Connection at separate chassis part |
| Type of control element: | Push button |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP30 |
| Rated voltage: | 900 - 900 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Power loss: | 850 W |
