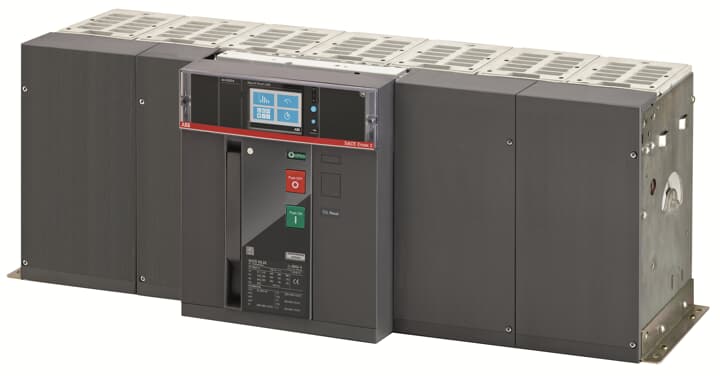

E6.2H/E9 6300 Ekip Tch LSIG 4p FHR 900V wyłącznik powietrzny
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SDA104622R1 |
| GTIN(EAN) | 8015644067021 |
| Price unit | piece |
| Catalog price | 238 962,57 zł (194 278,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 125 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 6300 A |
| Overload release current setting: | 2520.0 - 6300 A |
| Adjustment range short-term delayed short-circuit release: | 3780.0 - 63000 A |
| Adjustment range undelayed short-circuit release: | 9450.0 - 94500 A |
| Integrated earth fault protection: | yes |
| Type of electrical connection of main circuit: | Bolt connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as change-over contact: | 4 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Back side |
| Type of control element: | Push button |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP30 |
| Rated voltage: | 900 - 900 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Power loss: | 767 W |
