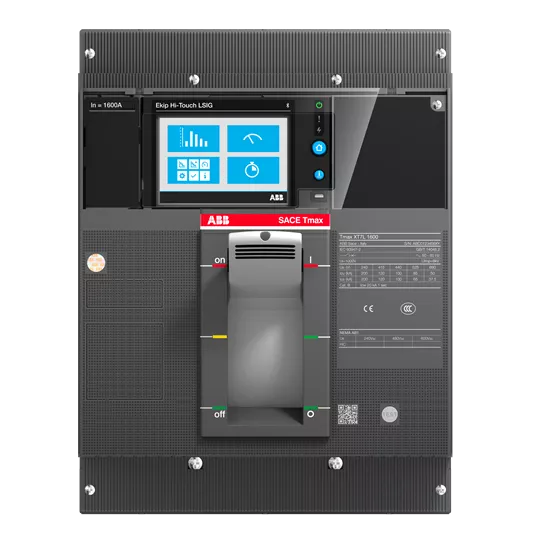

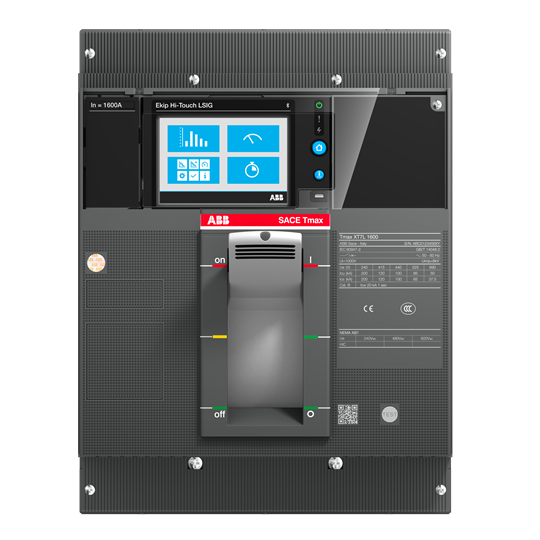

XT7L 1600 Ekip Touch Meas.LSI 1600 3p FF wyłącznik kompaktowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SDA100977R1 |
| GTIN(EAN) | 8056221010313 |
| Price unit | piece |
| Catalog price | 38 434,45 zł (31 247,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9,7 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 1600 A |
| Rated voltage: | 690 - 690 V |
| Overload release current setting: | 640.0 - 1600 A |
| Adjustment range short-term delayed short-circuit release: | 960.0 - 16000 A |
| Adjustment range undelayed short-circuit release: | 2400.0 - 24000 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Bolt connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| With switched-off indicator: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Toggle |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Power loss: | 94 W |
