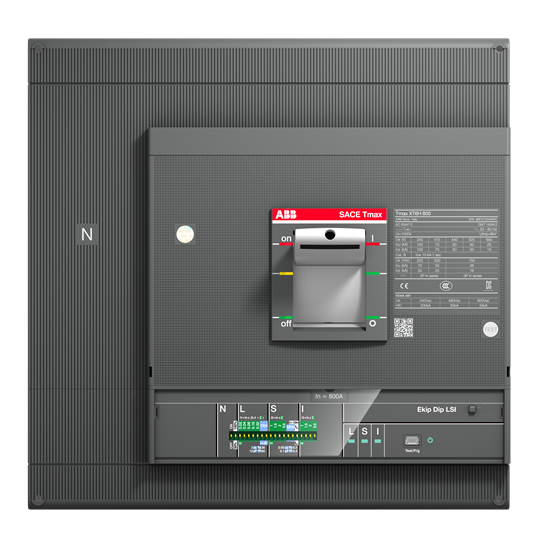

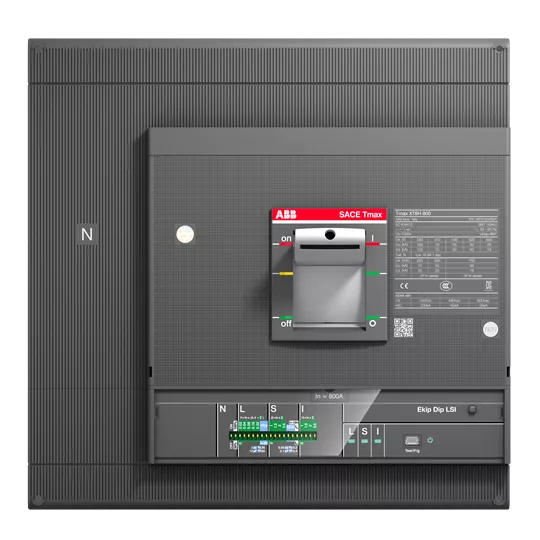

XT6S 800 Ekip Dip LS/I In=800 4p F F wyłącznik kompaktowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SDA100754R1 |
| GTIN(EAN) | 8056221008082 |
| Price unit | piece |
| Catalog price | 16 674,51 zł (13 556,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 12 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 800 A |
| Rated voltage: | 690 - 690 V |
| Overload release current setting: | 320.0 - 800 A |
| Adjustment range short-term delayed short-circuit release: | 800 - 8000 A |
| Adjustment range undelayed short-circuit release: | 800 - 8000 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Bolt connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| With switched-off indicator: | no |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Toggle |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Power loss: | 53.4 W |
