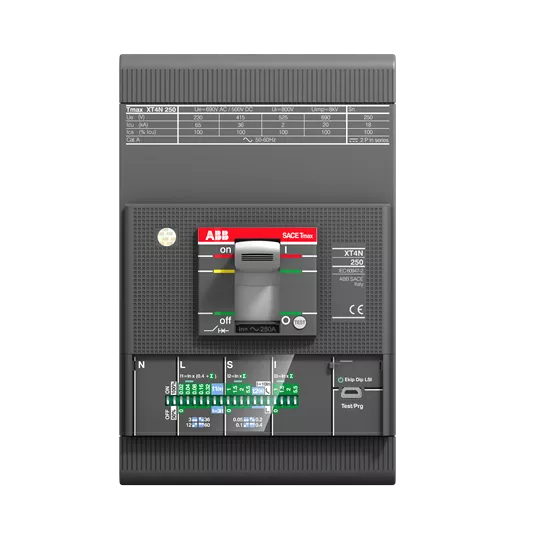

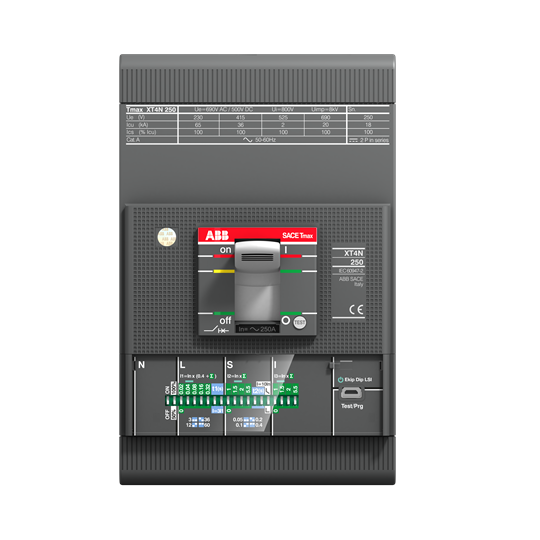

XT4H 250 Ekip LSI In=40A 3p
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SDA075442R1 |
GTIN(EAN) | 8015644794194 |
Price unit | piece |
Catalog price | 12 128,10 zł (9 860,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 2,5 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 250 A |
Rated voltage: | 690 - 690 V |
Overload release current setting: | 16.0 - 40 A |
Adjustment range short-term delayed short-circuit release: | 40 - 400 A |
Adjustment range undelayed short-circuit release: | 40 - 400 A |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Bolt connection |
Device construction: | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
With switched-off indicator: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Front side |
Type of control element: | Toggle |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP20 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
