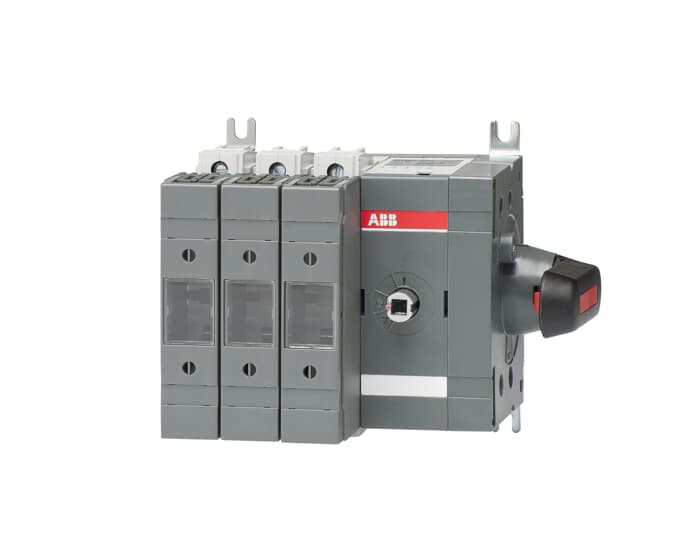

OS63GBS30K
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SCA115924R1001 |
GTIN(EAN) | 6417019479248 |
Price unit | piece |
Catalog price | 2 413,01 zł (1 961,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1,2 kg |
ETIM class: | Fuse switch disconnector |
Version as main switch: | yes |
Version as safety switch: | yes |
Max. rated operation voltage Ue AC: | 1000 V |
Rated permanent current Iu: | 63 A |
Rated operation power at AC-23, 400 V: | 55 kW |
Conditioned rated short-circuit current Iq: | 80 kA |
Rated short-time withstand current lcw: | 2.5 kA |
Suitable for fuses: | Shape A2/A3 |
Number of poles: | 3 |
Type of electrical connection of main circuit: | Screw connection |
Cable entry: | Other |
Equipped with connectors: | yes |
Suitable for floor mounting: | no |
Suitable for front mounting: | no |
Suitable for busbar mounting: | yes |
Type of control element: | Long turning handle |
Position control element: | Right |
Motor drive optional: | no |
Motor drive integrated: | no |
Version as emergency stop installation: | no |
