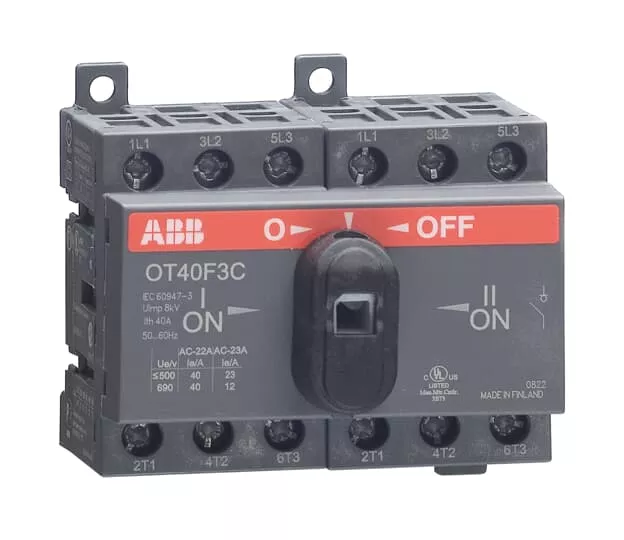

OT40F3C Przełącznik (I-0-II) 40A, 3P, napęd z przodu, bez wałka i rączki, osłona zacisków IP20, montaż na płycie lub szynie DIN
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SCA104913R1001 |
| GTIN(EAN) | 6417019390536 |
| Price unit | piece |
| Catalog price | 433,73 zł (352,63 zł + 23% VAT) |
| Sale price | from 199,72 zł / szt. (162,37 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250 g |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | no |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 750 V |
| Rated permanent current at AC-23, 400 V: | 23 A |
| Rated permanent current at AC-21, 400 V: | 40 A |
| Rated short-time withstand current lcw: | 0.5 kA |
| Rated operation power at AC-23, 400 V: | 11 kW |
| Switching power at 400 V: | 11 kW |
| Number of poles: | 3 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device plug-in technique |
| Suitable for floor mounting: | no |
| Suitable for front mounting 4-hole: | yes |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Suitable for intermediate mounting: | no |
| Colour control element: | Black |
| Type of control element: | Other |
| Interlockable: | yes |
| Degree of protection (IP), front side: | IP20 |
| Degree of protection (NEMA): | 1 |
| Rated operating voltage: | 750 - 750 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Type of electrical connection of main circuit: | Screw connection |
| Width: | 70 mm |
| Height: | 68 mm |
| Depth: | 68 mm |
