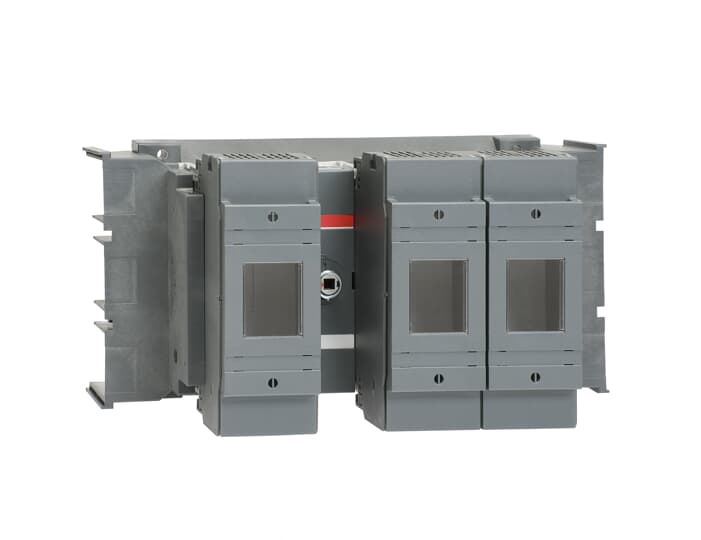

OS250B12LRP
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SCA022854R5690 |
| GTIN(EAN) | 6417019303871 |
| Price unit | piece |
| Catalog price | 8 275,01 zł (6 727,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 5,28 kg |
| ETIM class: | Fuse switch disconnector |
| Version as main switch: | yes |
| Version as safety switch: | yes |
| Max. rated operation voltage Ue AC: | 1000 V |
| Rated permanent current Iu: | 250 A |
| Rated operation power at AC-23, 400 V: | 250 kW |
| Conditioned rated short-circuit current Iq: | 80 kA |
| Rated short-time withstand current lcw: | 8 kA |
| Suitable for fuses: | Shape B1-B3 |
| Type of electrical connection of main circuit: | Bolt connection |
| Equipped with connectors: | yes |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | no |
| Suitable for busbar mounting: | yes |
| Type of control element: | Long turning handle |
| Position control element: | Front side |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Version as emergency stop installation: | no |
| Number of poles: | 3 |
| Cable entry: | Other |
