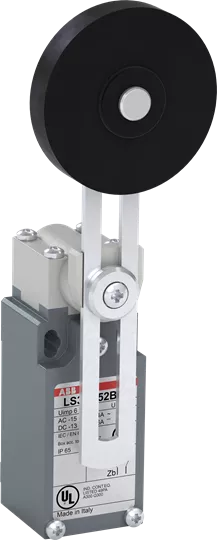

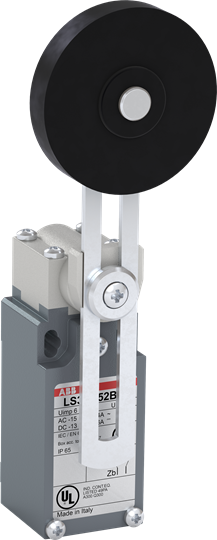

LS35M52B11 wyłącznik krańcowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBV013752R1211 |
| GTIN(EAN) | 3471522624642 |
| Price unit | piece |
| Catalog price | 275,85 zł (224,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 203 g |
| ETIM class: | End switch |
| Width sensor: | 50 mm |
| Height of sensor: | 130 mm |
| Length of sensor: | 52 mm |
| Rated operation current Ie at AC-15, 24 V: | 10 A |
| Rated operation current Ie at AC-15, 125 V: | 5.5 A |
| Rated operation current Ie at AC-15, 230 V: | 3.1 A |
| Rated operation current Ie at DC-13, 24 V: | 6 A |
| Rated operation current Ie at DC-13, 125 V: | 0.6 A |
| Rated operation current Ie at DC-13, 230 V: | 0.4 A |
| Switching function: | Quick-break switch |
| Switching function latching: | no |
| Output electronic: | no |
| Forced opening: | no |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Metal |
| Coating housing: | Powder coating |
| Type of control element: | Plunger |
| Alignment of the control element: | Other |
| Type of electric connection: | Connector 1/2 inch |
| With status indication: | no |
| Suitable for safety functions: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP66 |
| Diameter sensor: | 0 mm |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as change-over contact: | 0 |
