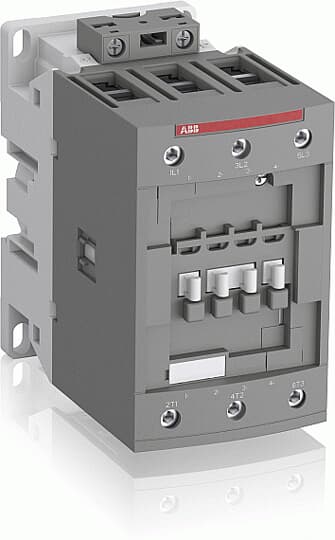

Stycznik AF96-30-00-11 20-60V DC 24-60V AC
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBL407001R1100 |
GTIN(EAN) | 3471523133211 |
Price unit | piece |
Catalog price | 1 817,13 zł (1 477,34 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1,22 kg |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 130 A |
Rated operation current Ie at AC-3, 400 V: | 105 A |
Modular version: | no |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Rated control supply voltage AC 50 Hz: | 24 - 24 V |
Rated control supply voltage AC 60 Hz: | 24 - 24 V |
Rated control supply voltage DC: | 20 - 20 V |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of normally closed contacts as main contact: | 0 |
Operating voltage AC 50 Hz: | 1000 - 1000 V |
Operating voltage AC 60 Hz: | 1000 - 1000 V |
Rated operation power at AC-3, 400 V: | 45 kW |
Width: | 70 mm |
Height: | 125.5 mm |
Depth: | 116 mm |
