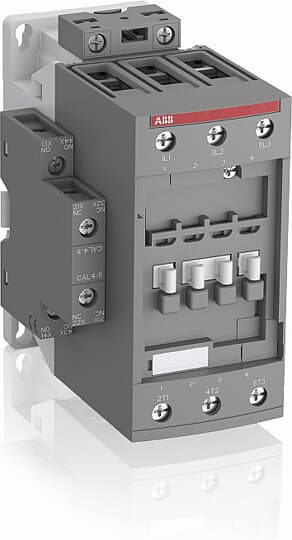

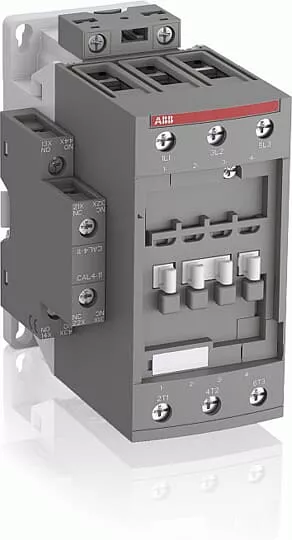

Stycznik AF40B-30-11-13
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBL347061R1311 |
GTIN(EAN) | 3471523024816 |
Price unit | piece |
Catalog price | 1 418,04 zł (1 152,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 990 g |
ETIM class: | Power contactor, AC switching |
Rated control supply voltage AC 50 Hz: | 100 - 100 V |
Rated control supply voltage AC 60 Hz: | 100 - 100 V |
Rated control supply voltage DC: | 100 - 100 V |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 70 A |
Rated operation current Ie at AC-3, 400 V: | 40 A |
Rated operation power NEMA: | 18.6425 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 3 |
Operating voltage AC 50 Hz: | 690 - 690 V |
Operating voltage AC 60 Hz: | 690 - 690 V |
Rated operation power at AC-3, 400 V: | 18.5 kW |
Width: | 67 mm |
Height: | 125.5 mm |
Depth: | 111 mm |
